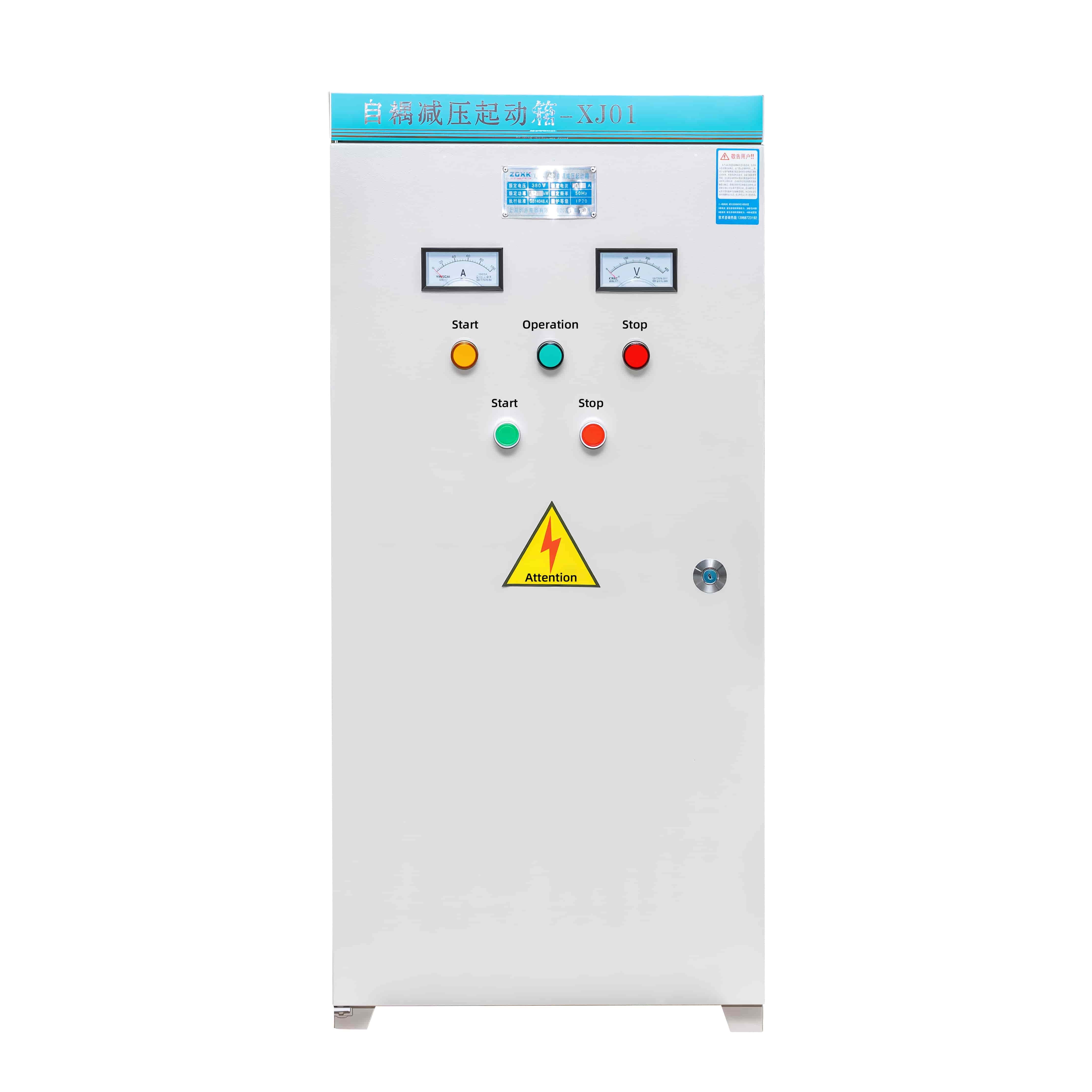

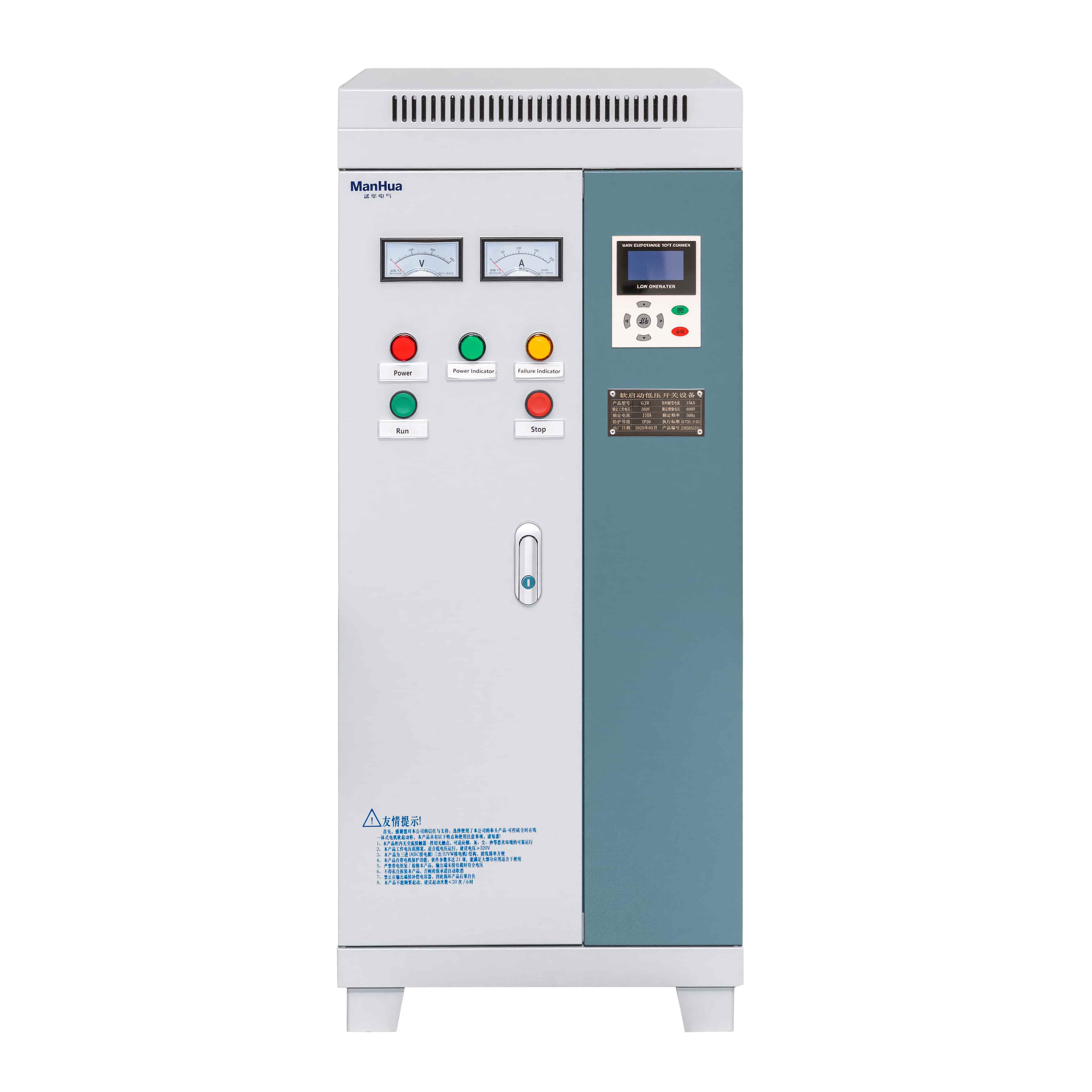

Three-phase 380V online soft-starting cabinet

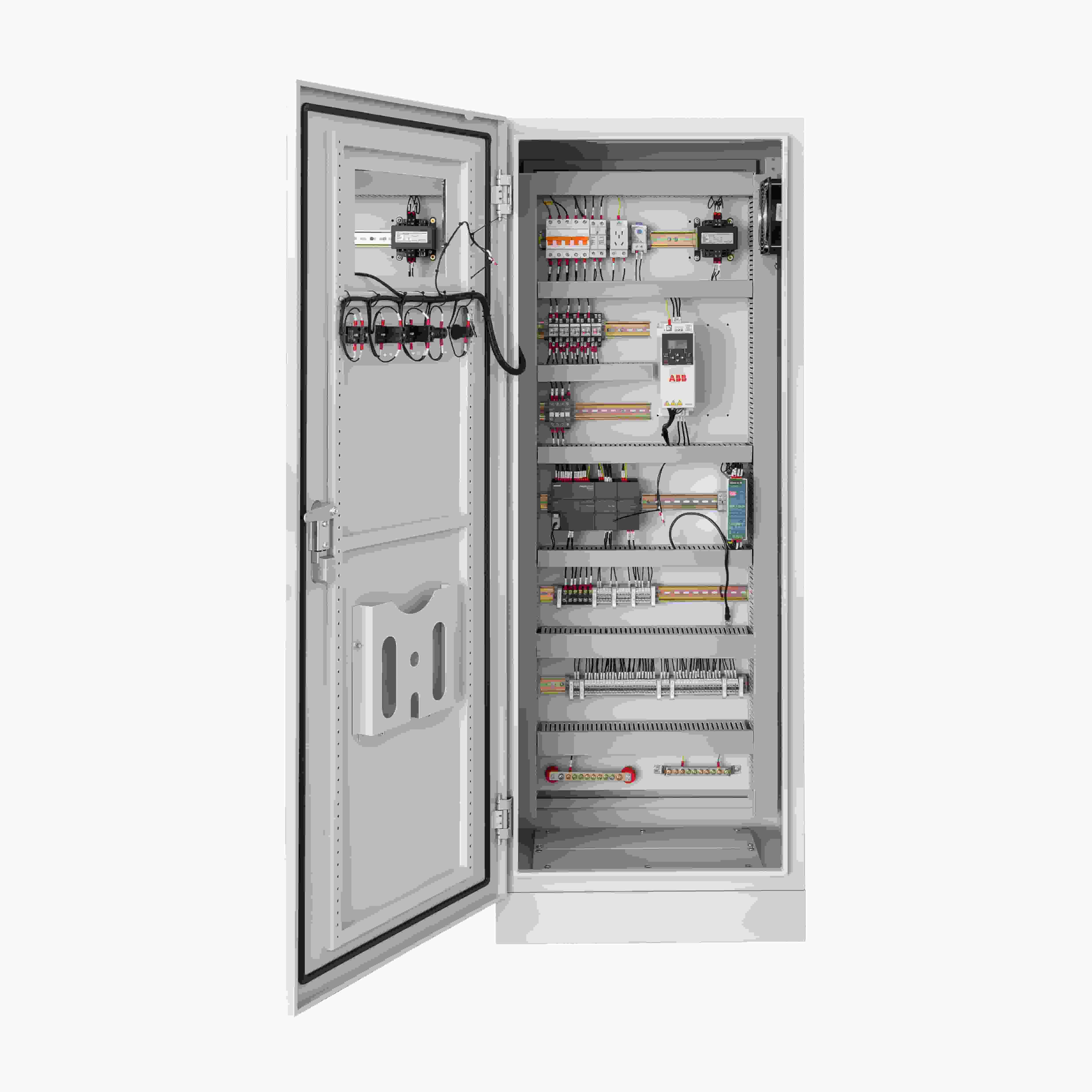

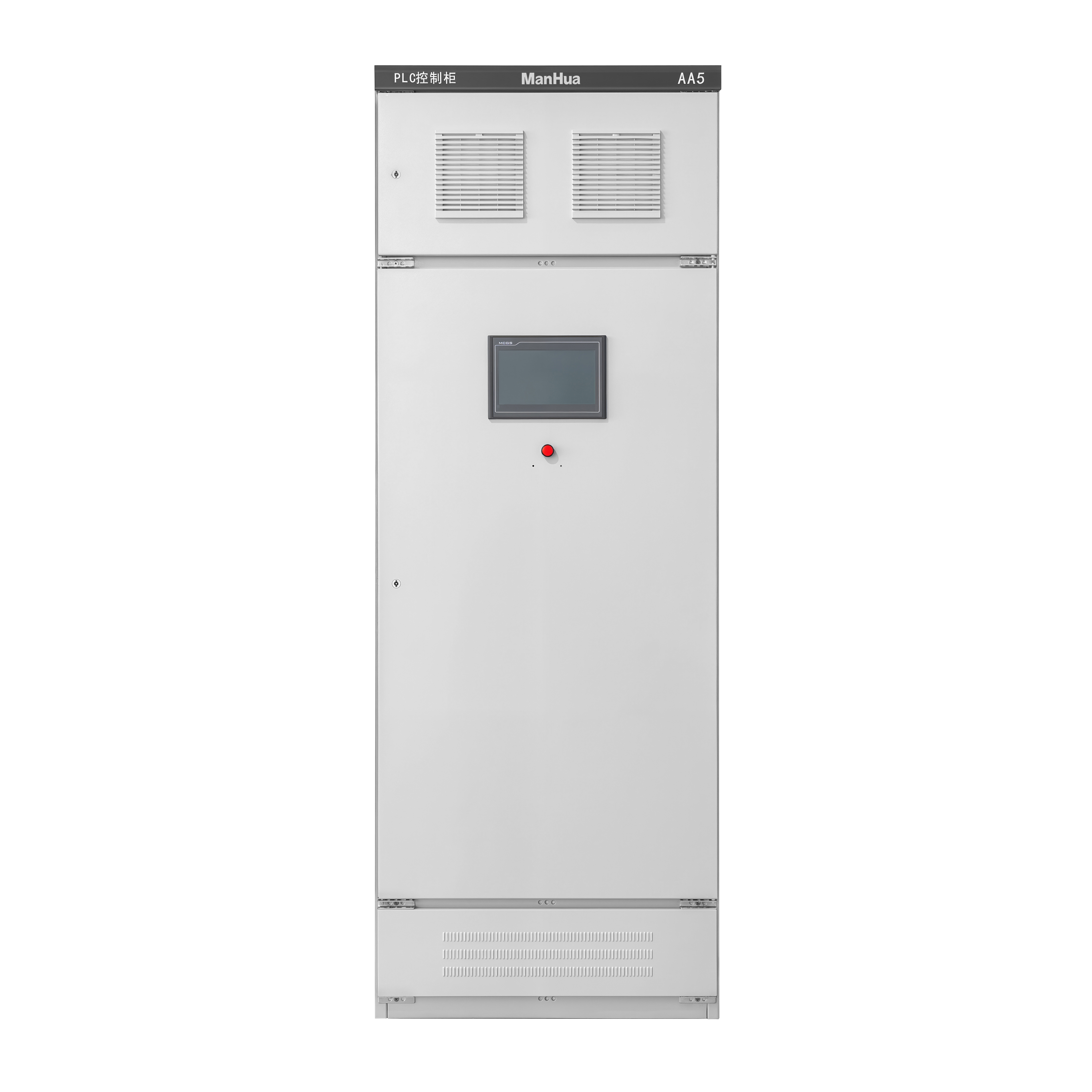

PLC control cabinet with inverter

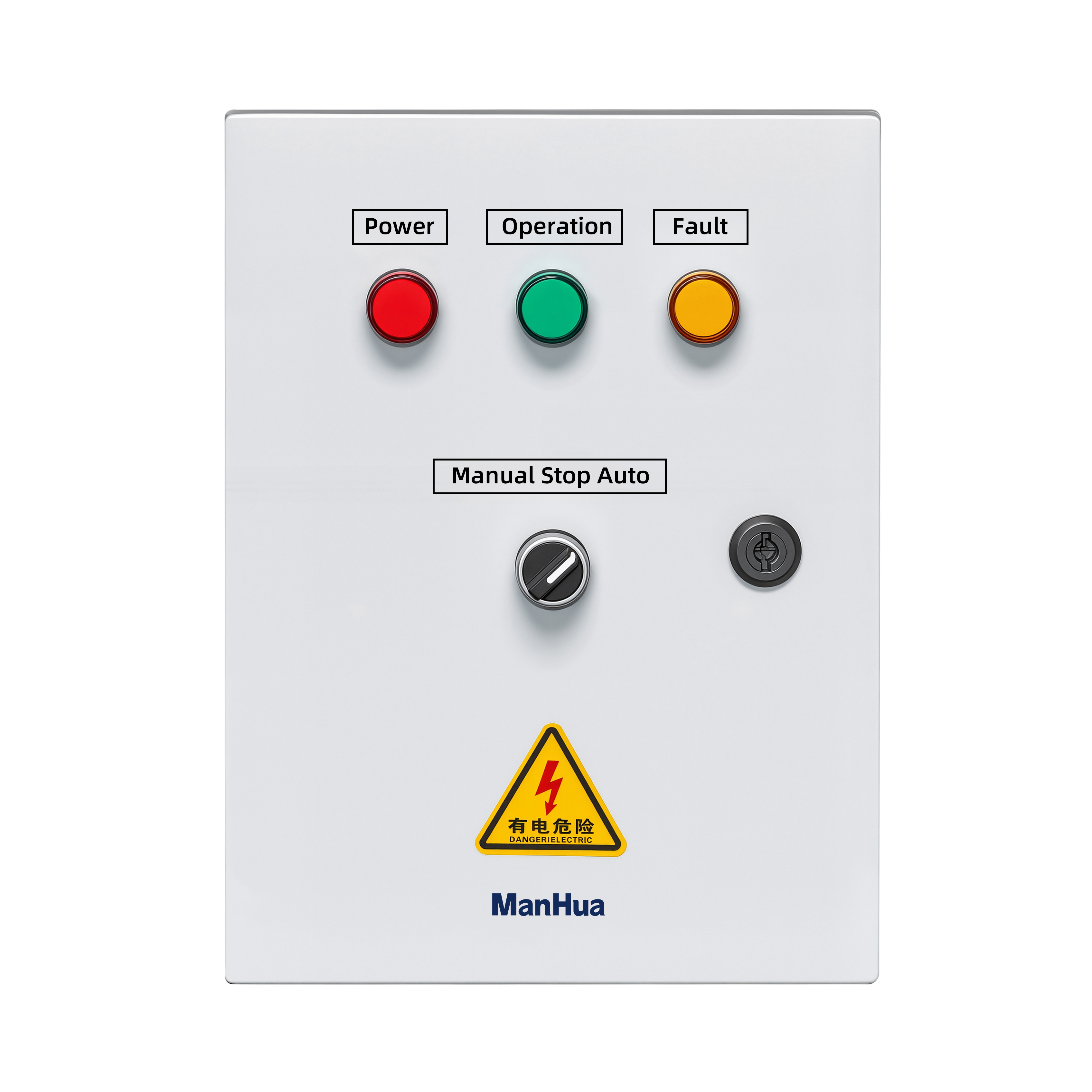

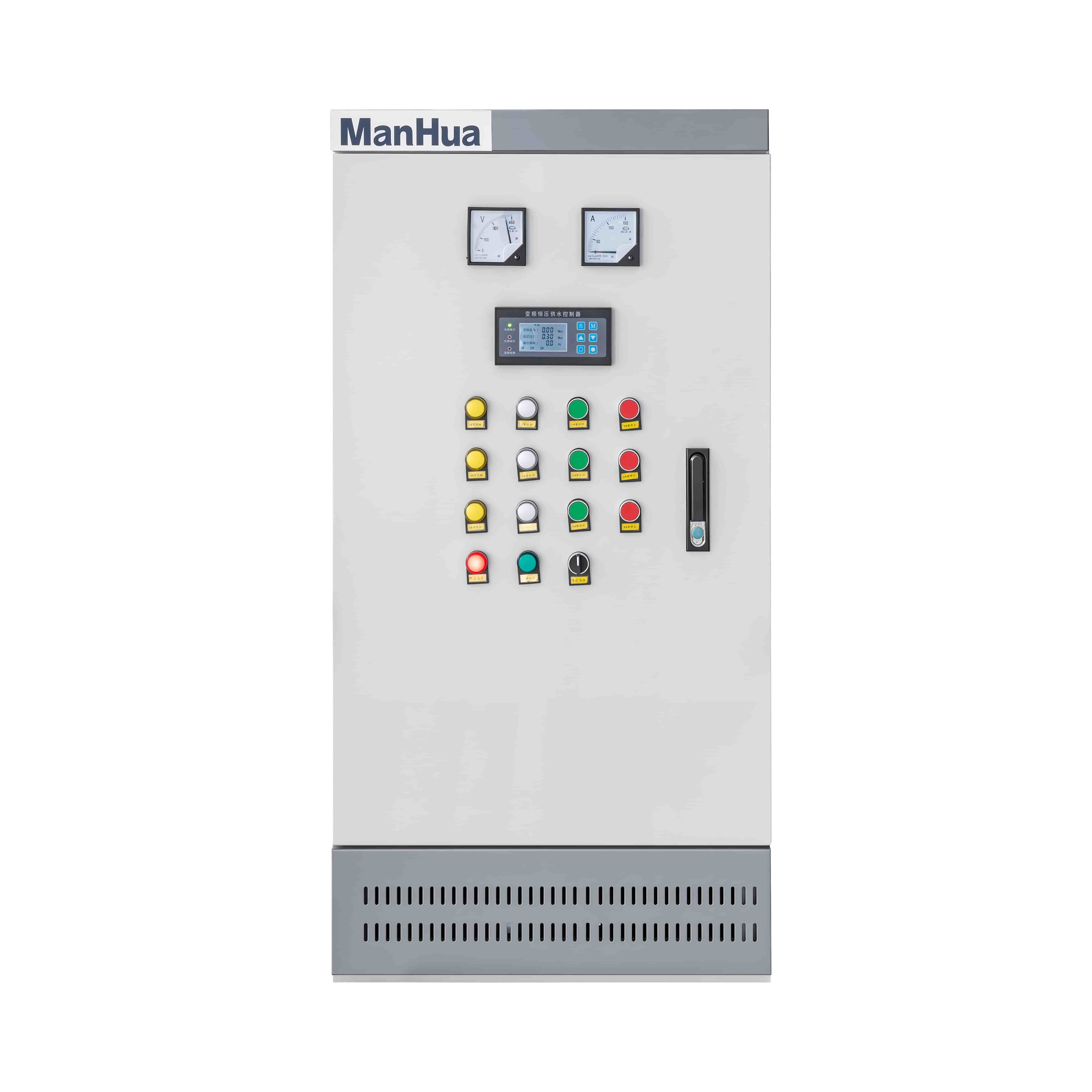

Constant pressure water supply automatic electrical complete distribution box 200/250/280/315/400KW

size：100*50*60CM
Material: iron, copper, aluminum, circuit board, electronic component, capacitor
Principle: An electrical control device that controls AC motors by changing the frequency of the motor's working power supply.
Purpose：A frequency converter provides the required power supply voltage according to the actual needs of the motor, thereby achieving the purposes of energy saving and speed regulation. It also has many protection functions, such as overcurrent, overvoltage, and overload protection, etc.

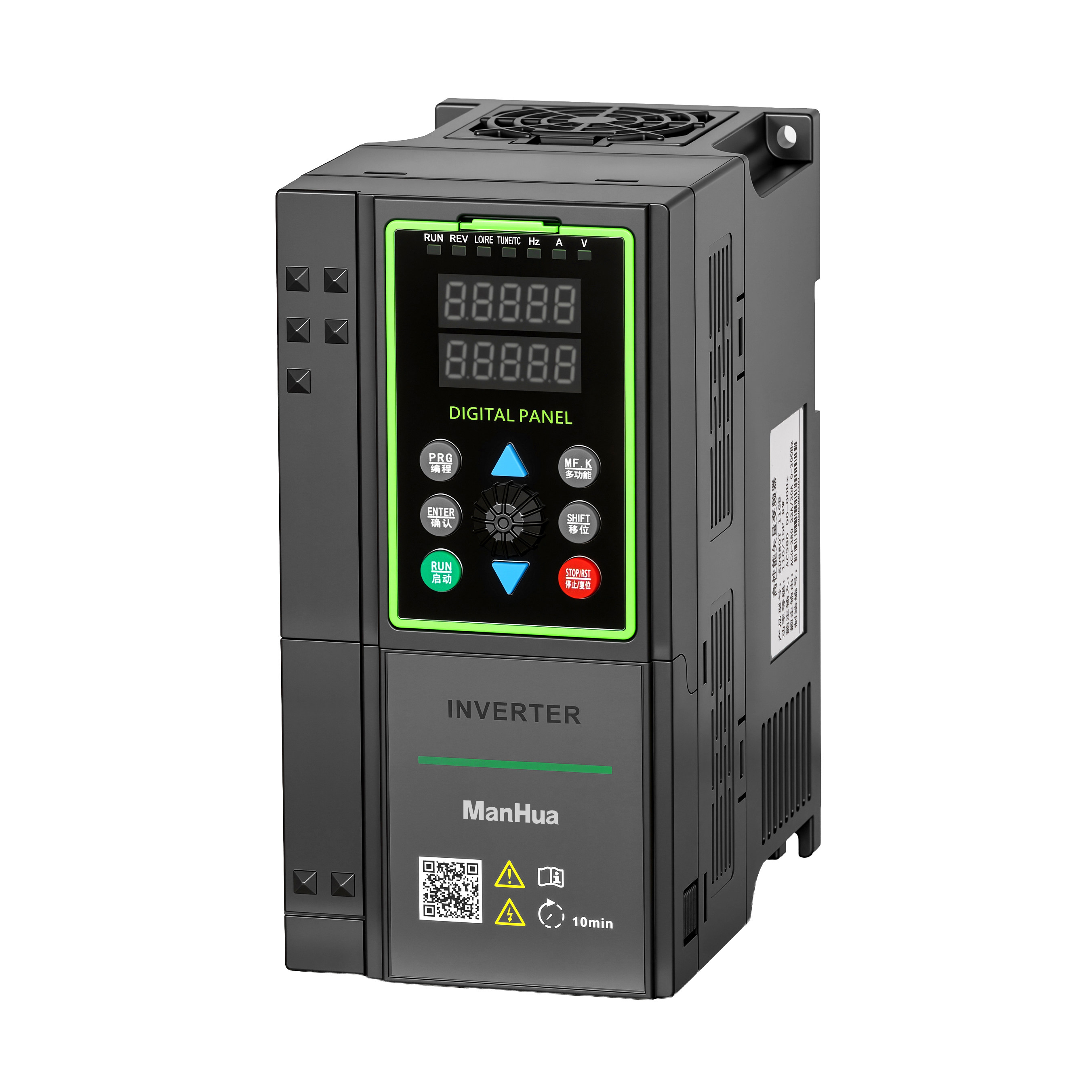

VFD MFD660
Protection:IP20
Supply Voltage/ Power:
1PH AC 200...240V
3PH AC 200...240V
3PH AC 380...440V

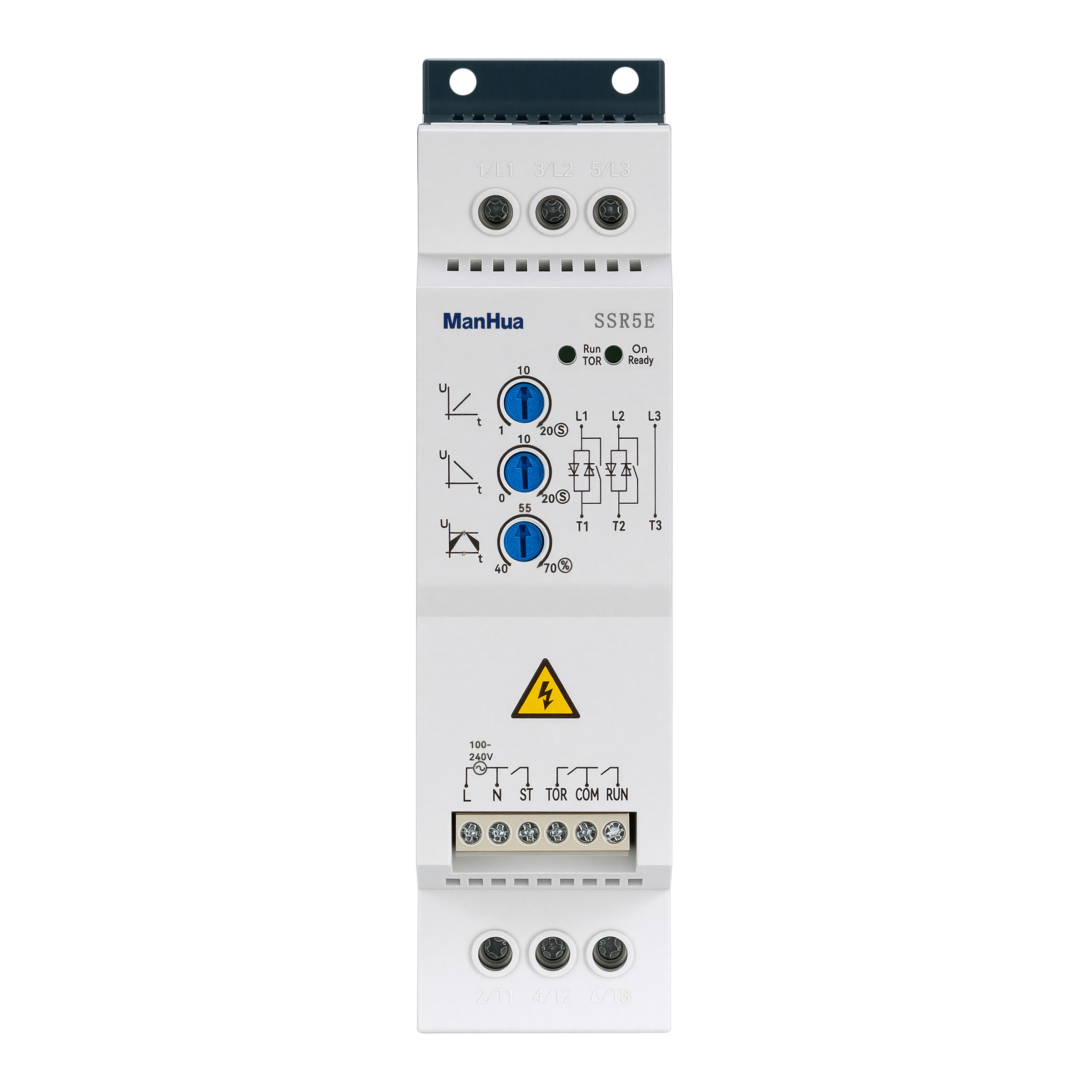

Soft Starter SSR5E
Rated Power:7.5 kW
Rated Voltage:400 V
Frequency:50/60 Hz

Rated Voltage: 230V/400V/500V
Rated Current: 100A/150A/200A/250A/300A/400A
IP Level: IP20
Response time: <40ms
