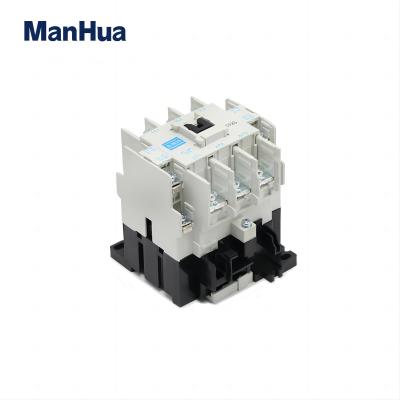

is_customized: Yes Model Number: S-N35
Main Circuit Rating Current: 40A Main Circuit Rating Voltage: 660V
Phase: 3 Number of Pole: 3
Electricity Type: AC Brand Name: ManHua
Origin: Mainland China Voltage: 200-660V
Rated frequency: 50Hz or 60Hz Defective rate: less than 1%
Electrical life: 1,000,000(AC3) Quality grade: Grade A+ quality
Service: One-stop service

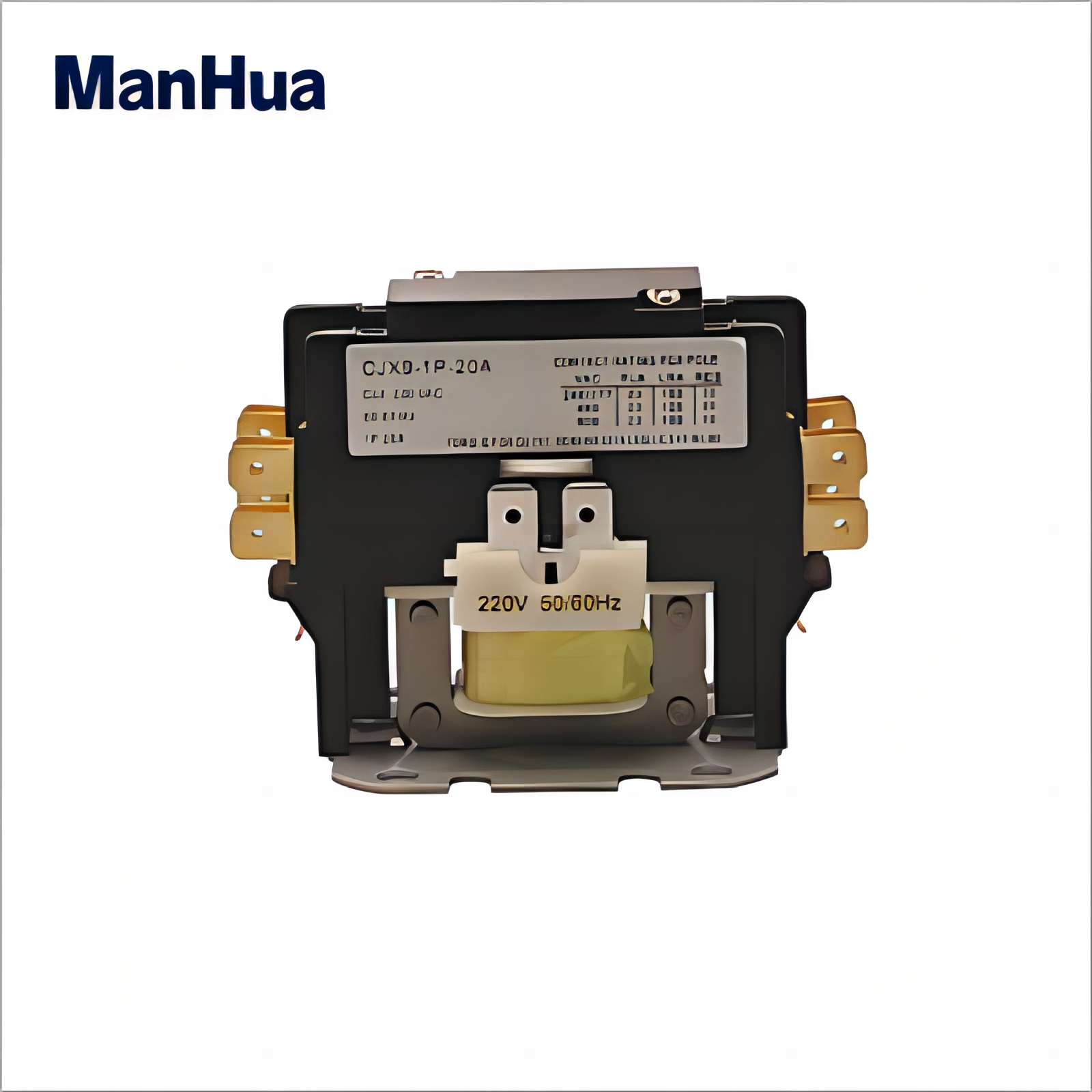

is_customized: Yes Model Number: CJX9-1P-20A
Main Circuit Rating Current: 20-90A Main Circuit Rating Voltage: UP TO 660V
Phase: 1 Number of Pole: 1
Electricity Type: AC Brand Name: ManHua
Origin: Mainland China Delivery: express, sea,air
Mechanical life: 10 years Package: 100pcs/ctn
Number of Pole: 1 OEM: available
Contacts: 85% silver points Color: black
Phase: 1 Warranty period: 1 years
Weight: 0.27kg

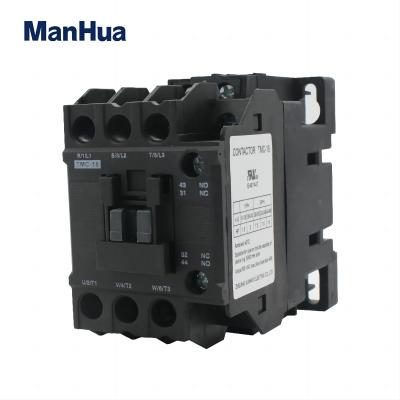

is_customized: Yes Model Number: TMC-18
Main Circuit Rating Current: 200A Main Circuit Rating Voltage: 380V
Phase: 3 Number of Pole: 3
Electricity Type: AC Brand Name: ManHua
Installation: Din Rail Frequency of coil: 50/60HZ
Mechnical Life: 10000000 times Electrical life: 1000000 times

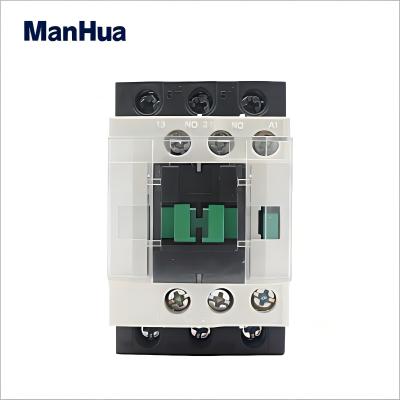

is_customized: Yes Model Number: FLC1-D18
Main Circuit Rating Current: 200A Main Circuit Rating Voltage: 380V
Phase: 3 Number of Pole: 3
Electricity Type: AC Brand Name: ManHua
Installation: Din Rail Frequency of coil: 50/60HZ
Mechnical Life: 10000000 times Electrical life: 1000000 times
is_customized: Yes Model Number: FLC1-D12
Main Circuit Rating Current: 200A Main Circuit Rating Voltage: 380V
Phase: 3 Number of Pole: 3
Electricity Type: AC Brand Name: ManHua
Installation: Din Rail Frequency of coil: 50/60HZ
Mechnical Life: 10000000 times Electrical life: 1000000 times

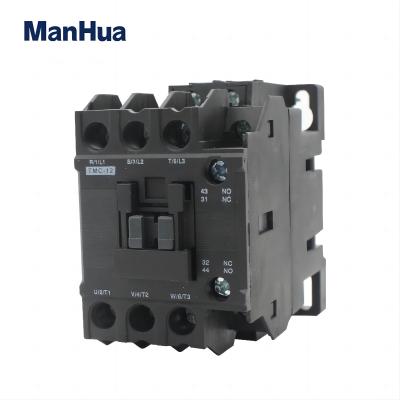

is_customized: Yes Model Number: TMC-12
Main Circuit Rating Current: 200A Main Circuit Rating Voltage: 380V
Phase: 3 Number of Pole: 3
Electricity Type: AC Brand Name: ManHua
Installation: Din Rail Frequency of coil: 50/60HZ
Mechnical Life: 10000000 times Electrical life: 1000000 times

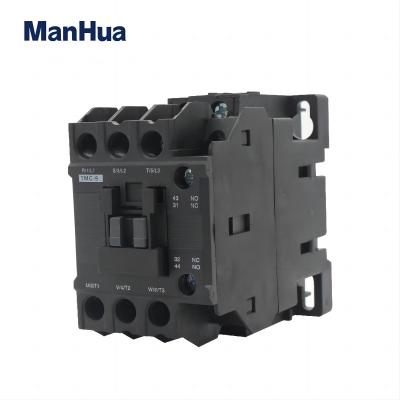

is_customized: Yes Model Number: TMC-9
Main Circuit Rating Current: 200A Main Circuit Rating Voltage: 380V
Phase: 3 Number of Pole: 3
Electricity Type: AC Brand Name: ManHua
Installation: Din Rail Frequency of coil: 50/60HZ
Mechnical Life: 10000000 times Electrical life: 1000000 times
CONTACTOR

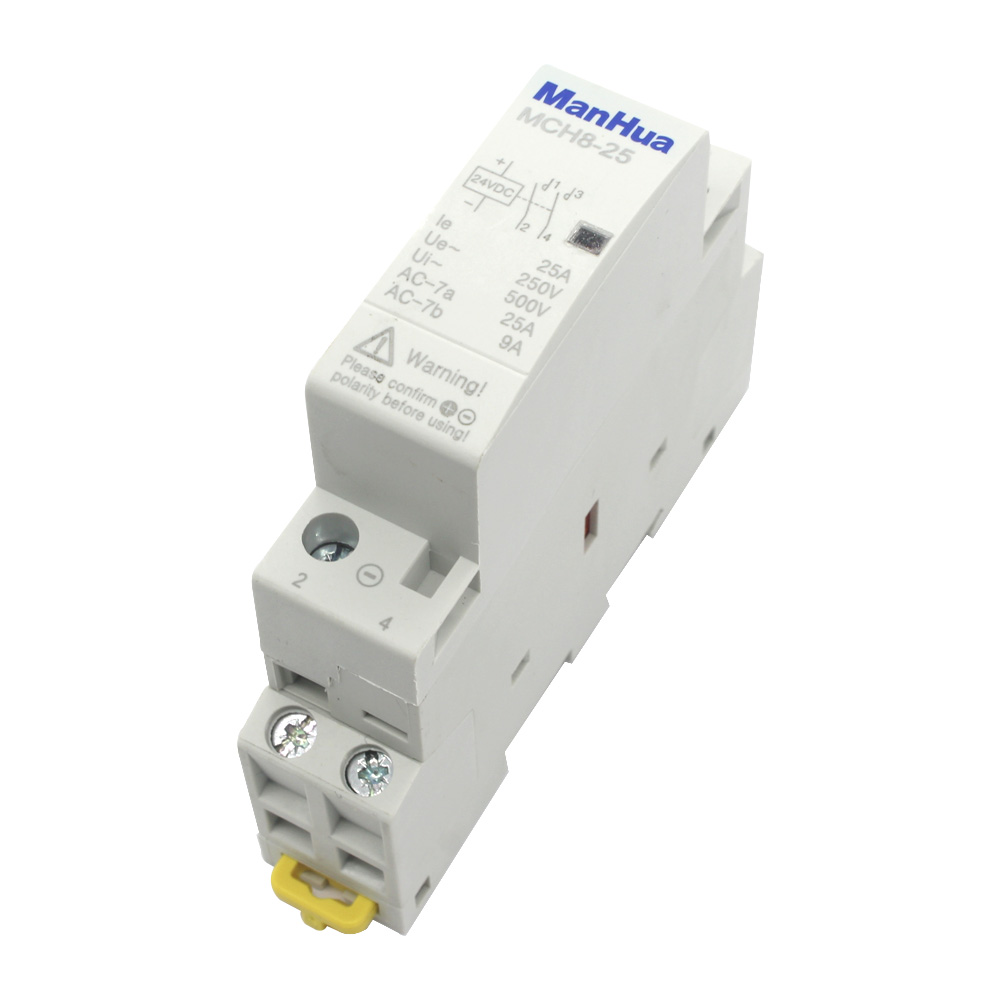

ManHua DC contactor is mainly designed for AC 50Hz or 60Hz circuits with 230V .Rated operating voltage in AC-7a usage ,rated operating voltage up to 230V, rated operating current up to 25A, Rated operating voltage in AC-7b usage , rated current to 10A. Using in breaking capacity below 6kA circuit. For distance connect or break the circuit.
Application: for home, apartment, hotel, automatic cut off or connect the power.
Normal working and installation conditions:
1. Ambient temperature:-5°C to +40°C,the average temperature no more than +35°C in 24 hours.
2. Altitude:no more than 2000m.
3. Atmospheric conditions: the relative humidity of the installation place should be no more than 50% when the maximum temperature is +40°C:if under a lower temperature,a higher relative humidity is allowed. The monthly average minimum temperature in the wettest month should not exceed +25°C and the monthly average maximum relative humidity of this month no more than 90%.Besides,the dew on the surface of products caused by temperature change should be taken into consideration.
4. Class of pollution: class 2.
5. Installation condition: class II.
Application instruction
1. Check whether the contactor agrees with the scope of application and the working condition before installation
2. During the process of installing pull down the motion stopping component and put the contactor on the safe orbit then push up the motion-stopping component to fix the contactor on the safe orbit avoid loosening and dropping pull down the motion-stopping component if you want to remove the contactor.
Caution
a).Make sure the correct mode of connection
b).Screw down the binding screw during the connection
Contactor
Features:
(1) the electromagnetic system, including attracting coil, a movable iron core and the static iron core;
(2) the contact system, which comprises three groups of main contact and one to two groups of normally open, normally closed auxiliary contact and the moving iron core, it is together mutual linkage;
(3) out AC contactor arc device, generally larger capacity is provided with an arc extinguishing device, in order to quickly cut off from the main contact arc, burnt out;
(4) insulation casing and accessories, all kinds of spring, a transmission mechanism, a short circuit ring, terminal etc..
CONTACTOR

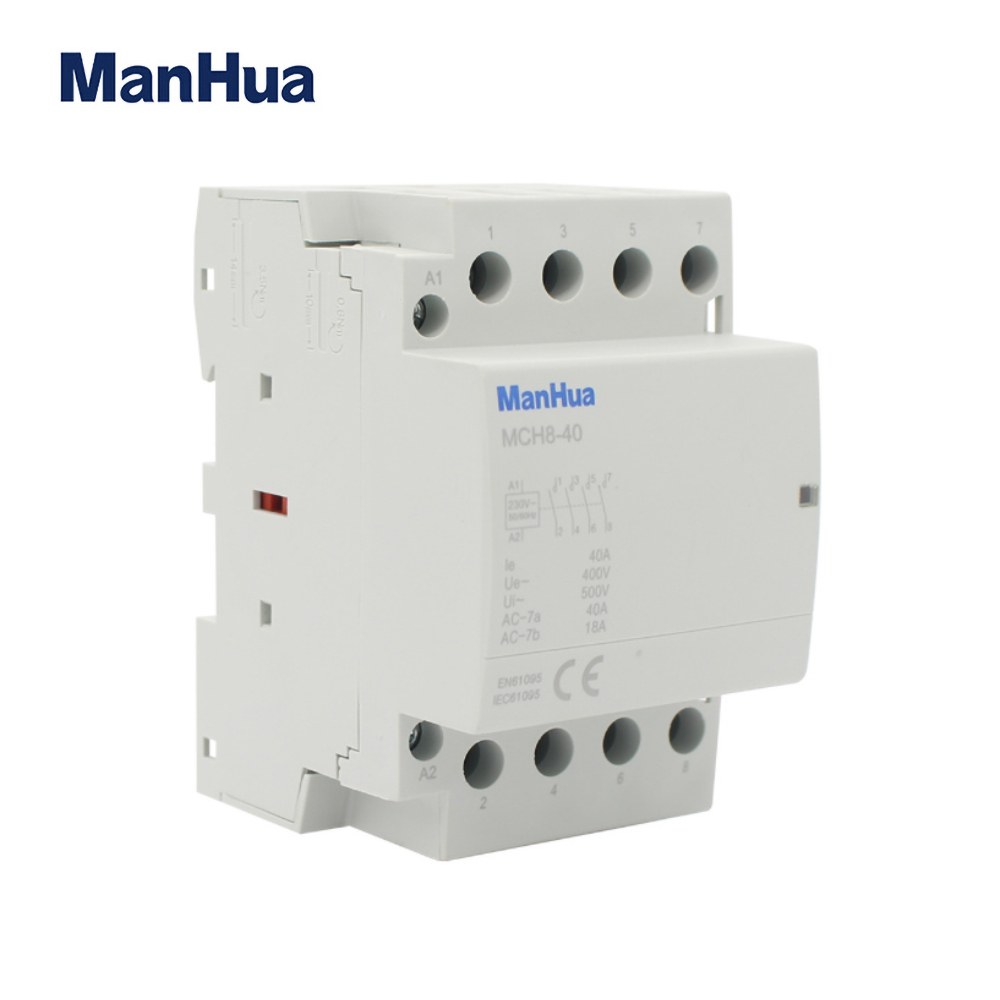

ManHua 4NO or 2NC 2NO 4P 40A 220V 400V~ 50/60HZ Din rail Household ac Modular contactor
CONTACTOR

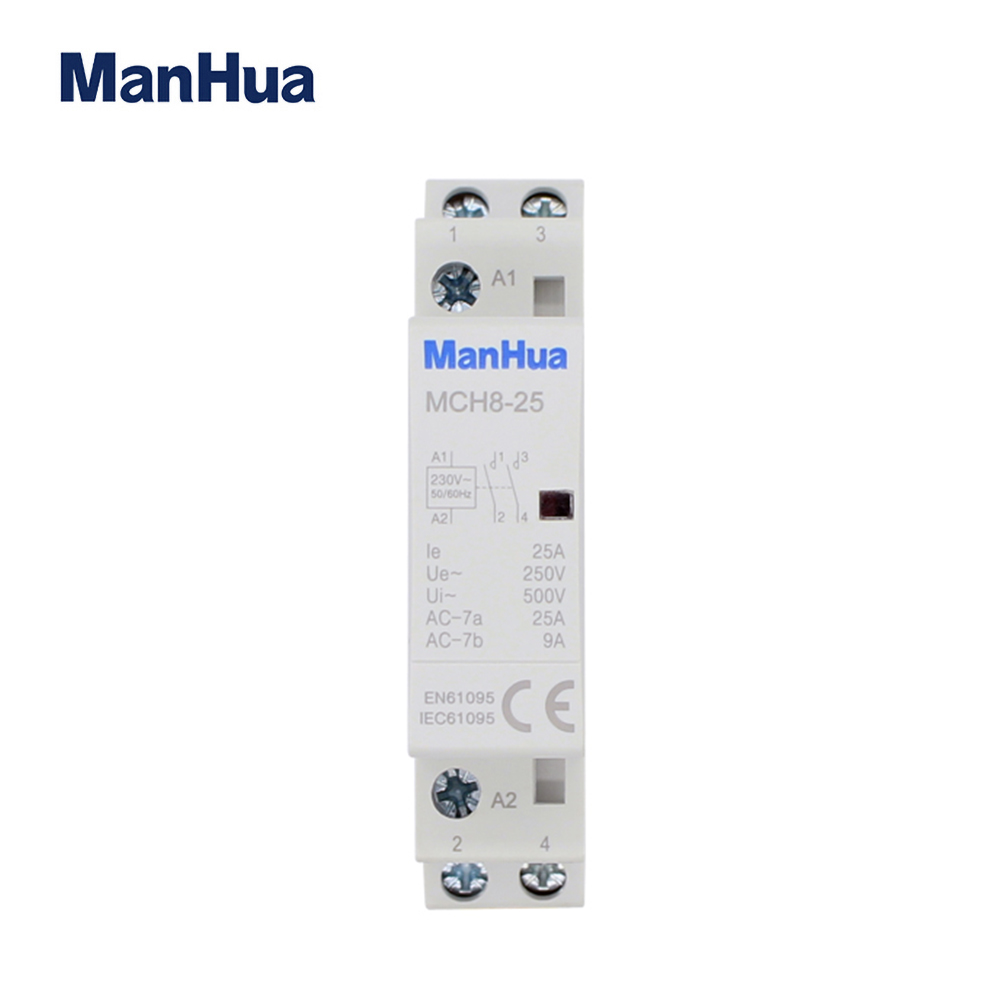

ManHua 2NO or 2NC or 1NO 1NC 2P 25A 220V/230V 50/60HZ Din rail Household ac Modular contactor
ManHua house hold AC contactor is mainly designed for AC 50Hz or 60Hz circuits with 230V .Rated operating voltage in AC-7a usage ,rated operating voltage up to 230V, rated operating current up to 25A, Rated operating voltage in AC-7b usage , rated current to 10A. Using in breaking capacity below 6kA circuit. For distance connect or break the circuit.

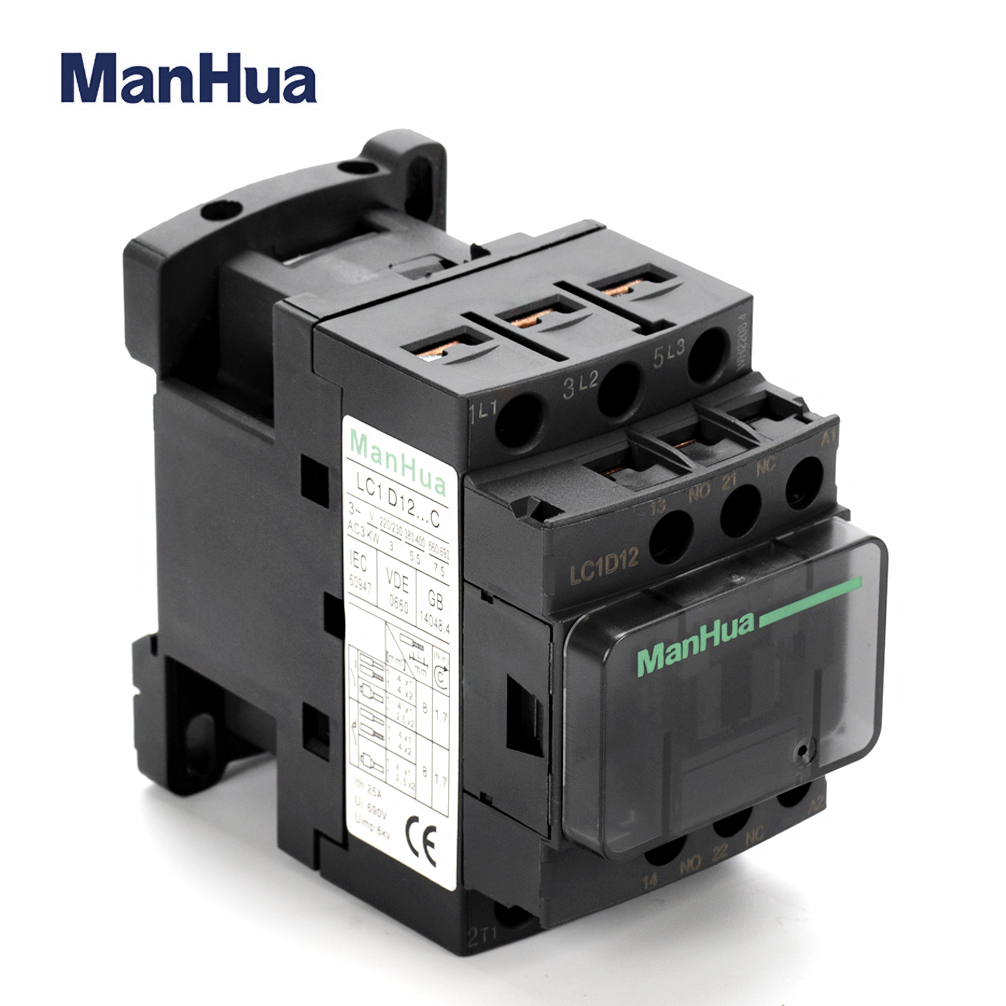

is_customized:Yes
Model Number:LC1D12
Main Circuit Rating Voltage:690V
Phase:3
Electricity Type:AC
Brand Name:ManHua
Origin:Mainland China
Rating Current:25A 30A 40A 50A
