Description
-

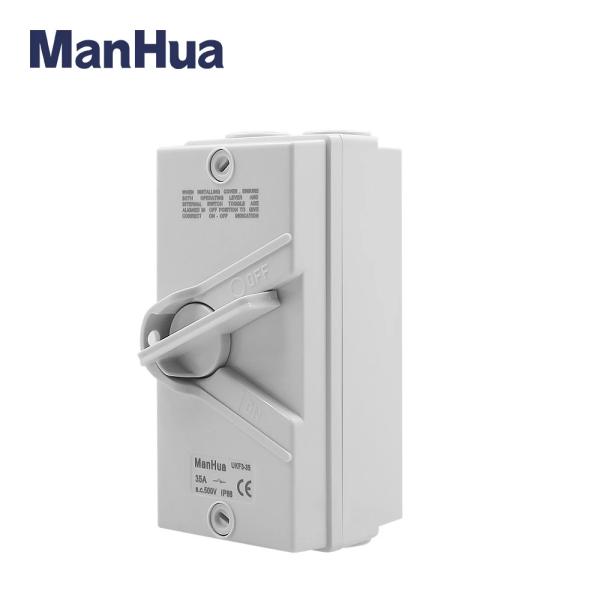

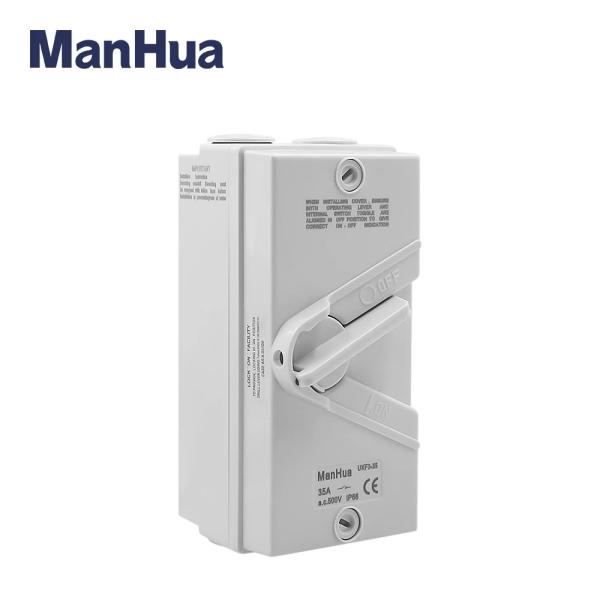

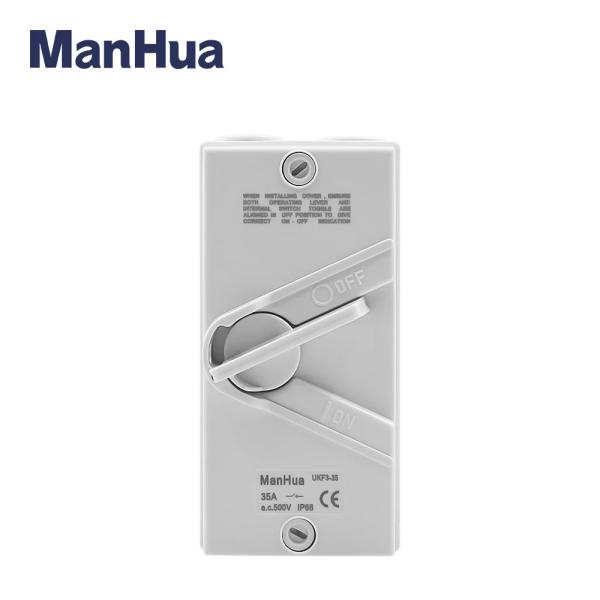

UKF isolator is rigidly built to withstand more than just the vagarise of the weather.
-
It is designed also for frequent swiching even on severe load such as switching of motor loads or othe highly inductive load.
-
Suitable to be mounted in outdoor and indoor for diverse environment.
Iterm |
UKF series 2Pole Isolation switch |
Model |
Isolation Switch |
Material |
Polycarbonate |
Type |
Standard Grounding, 2pole |
Color |
Grey |
Size |
165 * 82mm |
Terminal Bore |
5-6mm |
Voltage |
250V |
Current |
20A 35A 63A |
IP Rating |
IP66 |
Feature |
Fixed Earth and Neutral connector bars with dual clamping screws per tunnel provide equal stripping lengths and secure clamping for all cables. |
Warranty |
5 years |
Usage |
Industrial |
Features
-
Switching ON & OFF on-load
-

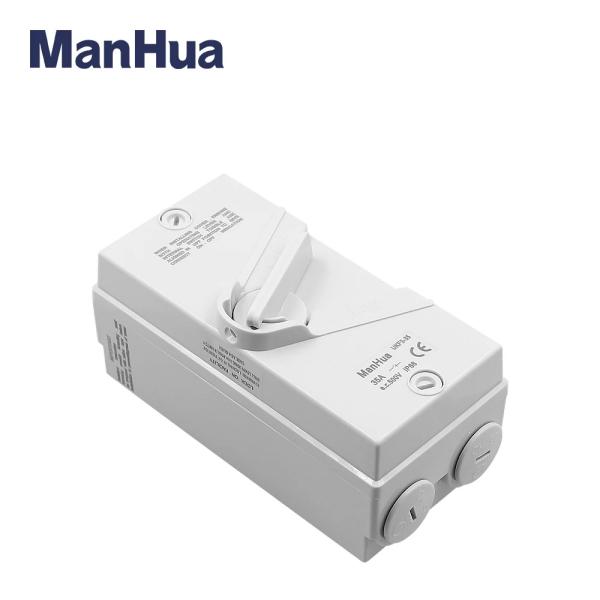

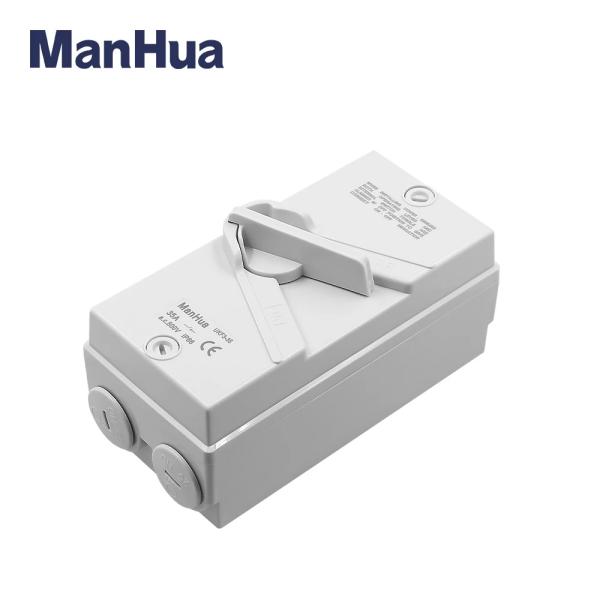

Padlockable handle with 7mm hole in OFF position Dual 25mm threaded conduit entries on top and bottom IP66 rating prevents from heavy dust and water ingress.
UKF1-20
|
20A 500V Single pole surface switch. Terminals accommodate 16mm2 cable. M Rating 220
|
IP65
|
UKF1-35
|
35A/63A 250V Single pole. Terminals accommodate mm2 cable. M rating 220
|
IP65
|
UKF1-63
|
35A/63A 250V Single pole. Terminals accommodate mm2 cable. M rating 220
|
IP65
|
UKF2-20
|
20A 440V double. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
UKF2-35
|
35A 440V double. Trminals accommodate 16mm2 cables. M Rarting 180
|
IP65
|
UKF2-63
|
63A 400V double. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
UKF3-20
|
63A 400V double. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
UKF3-35
|
35A 440V Tripe Pole. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
UKF3-63
|
55A 440V Tripe Pole. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
UKF4-20
|
20A 440V Tripe Pole. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
UKF4-35
|
35A 440V Tripe Pole. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
UKF4-63
|
55A 440V Tripe Pole. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
