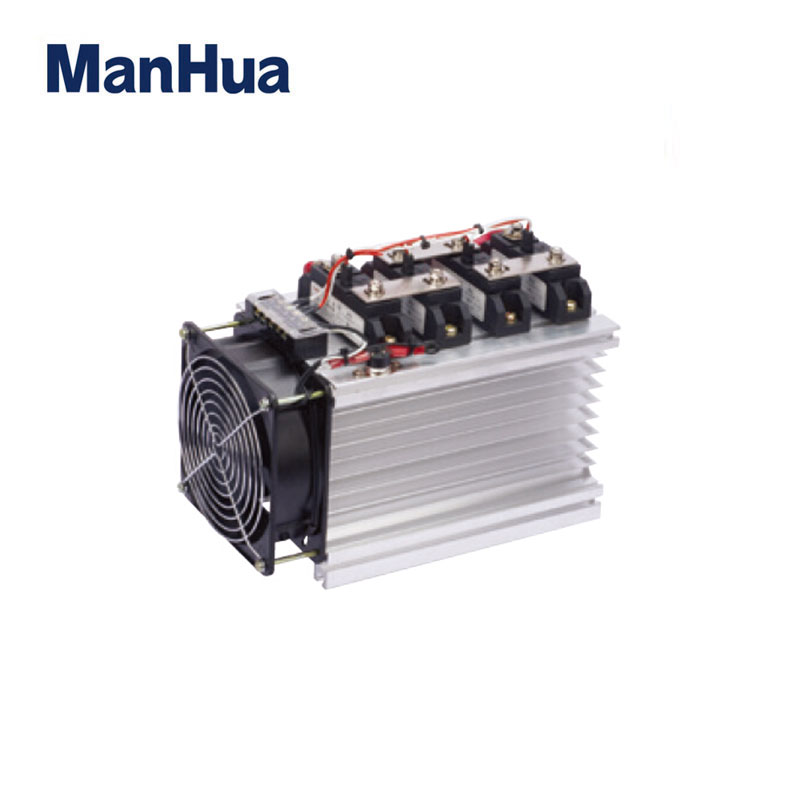

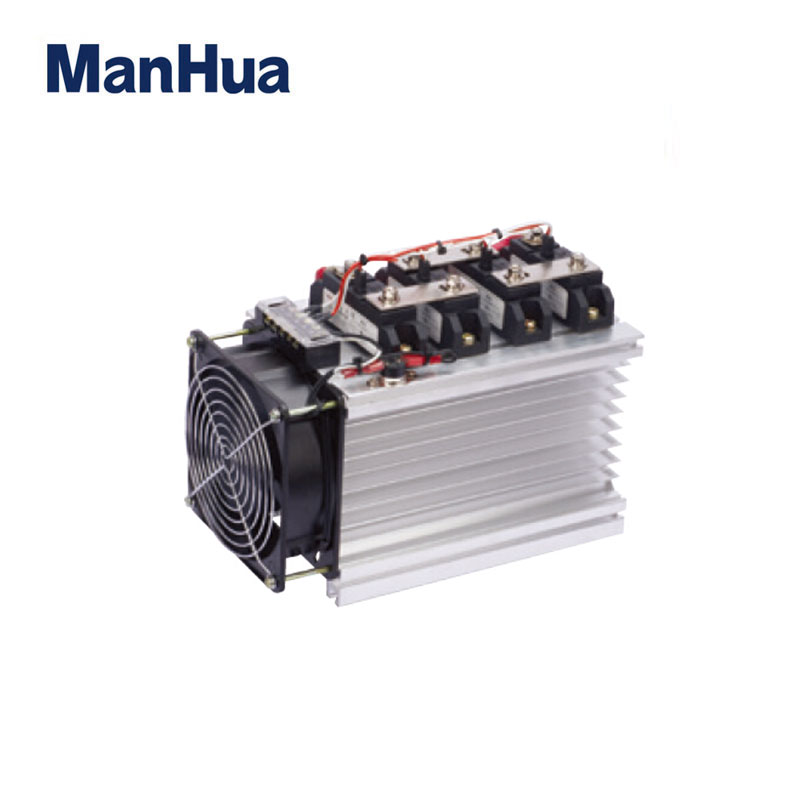

Appearance |
 |
 |
|
Type |
MH3100Z-3 |
MH3200Z-3 |
|
Load Current |
40A、60A、80A |
100A、120A、150A 、200A 、290A 、400A |
|
Weight |
1.8kg |
3.5kg |
|
Load Voltage |
440VAC、660VAC 、1200VAC |
|
|
Control Voltage |
3-32VDC / 90-250VAC |
|
|
Control Current |
10-25mA /AC ≤ 12mA |
|
|
On Voltage |
≤2V |
|
|
Off Leakage Current |
≤10mA |
|
|
On-off Time |
≤10ms |
|
|
Dielectric Strength |
2500VAC |
|
|
Insulation Resistance |
1000MΩ/500VDC |
|
|
Ambient Temperature |
-30℃ ~+75℃ |
|
|
Mounting Methods |
Screw mount |
|
|
The Work Instructions |
LED |
|
|

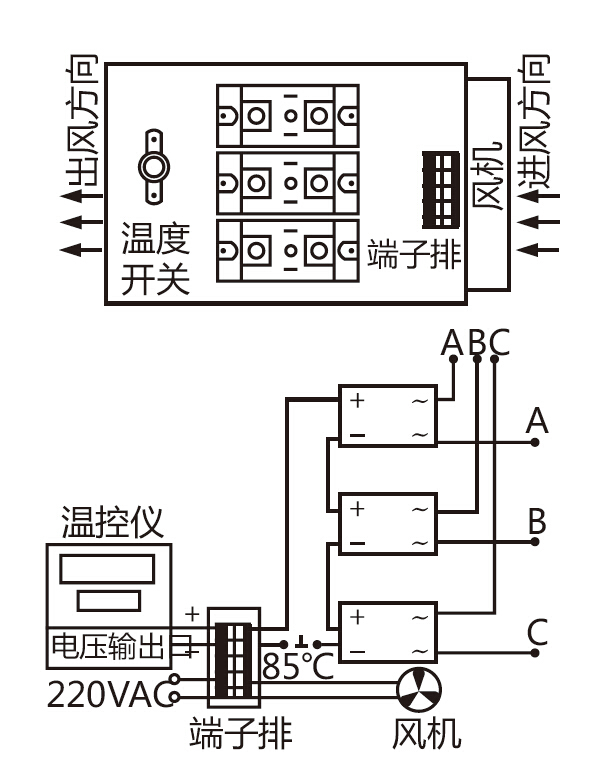

Wiring Drawing(mm) |
 |
|
|
Instruction |
1、load current 10A,should install radiator,upwards 40A should add fan for force cooling or water cooling. 2、when using lnductive load, please add a varistor at the output side, the value is 1.6-1.9 mutiple of load voltage. |
|
