Three Phase AC Solid State Relay Basic Type M3D 38 A/M3A 48 A Enhanced Type M3D 48 A/M3D 120 A-products-<script>if(navigator.userAgent.toLocaleLowerCase().indexOf("baidu") == -1){document.title ="ManHua Electric Co.,Ltd."}</script>

Type: Basic Type M3D 38 A
Enhanced Type M3D 48 A
Enhanced Type M3D 120 A
Basic Type M3A 48 A Request quotation

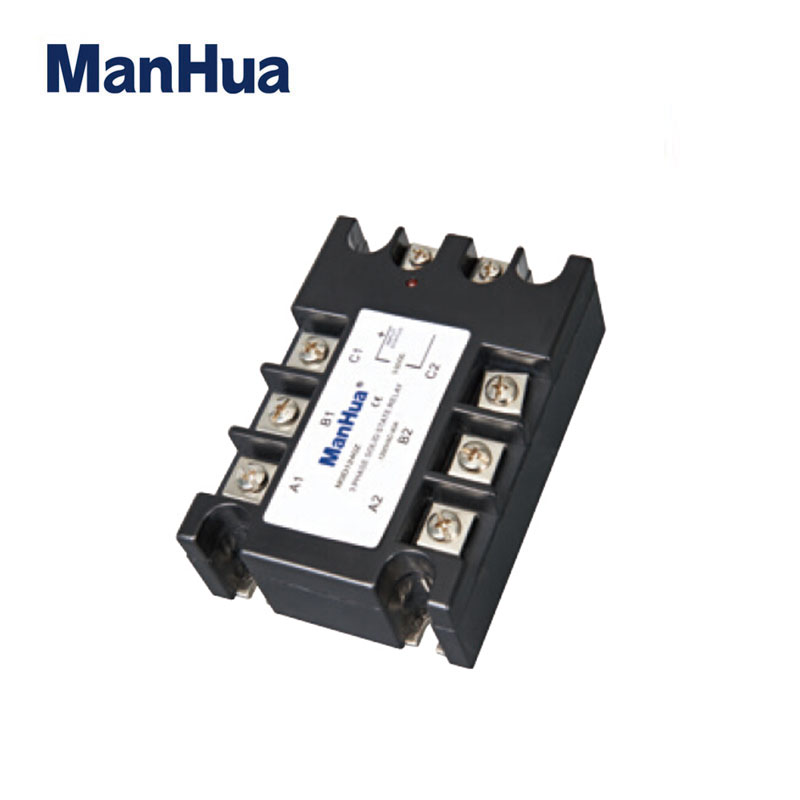

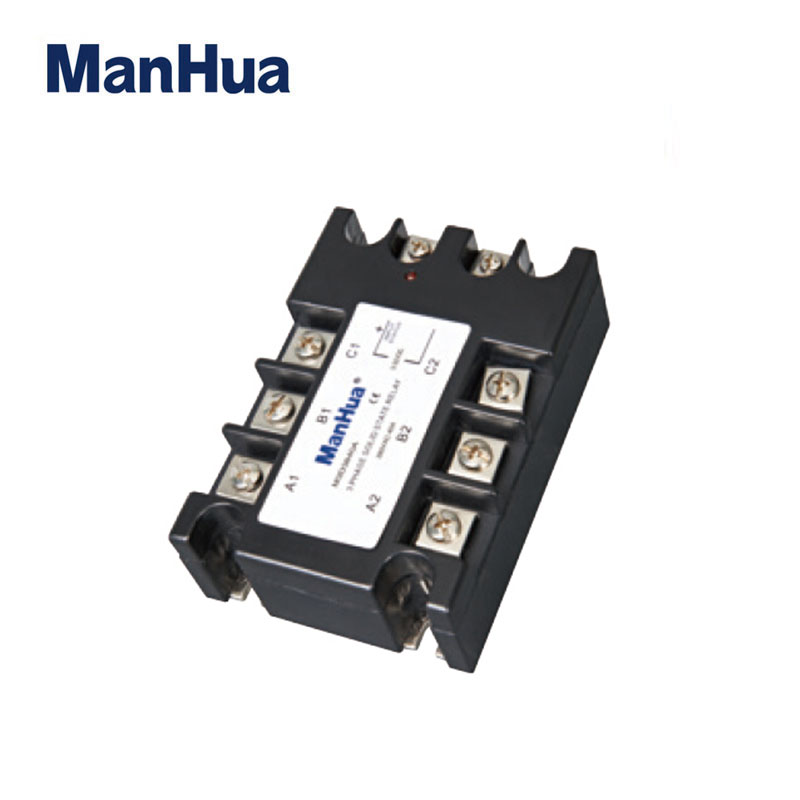

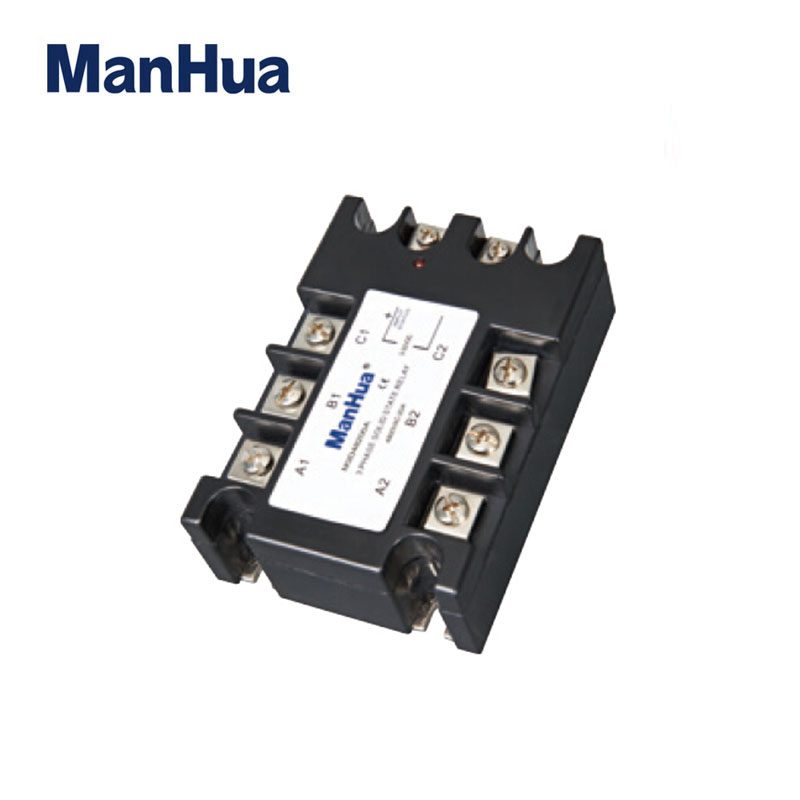

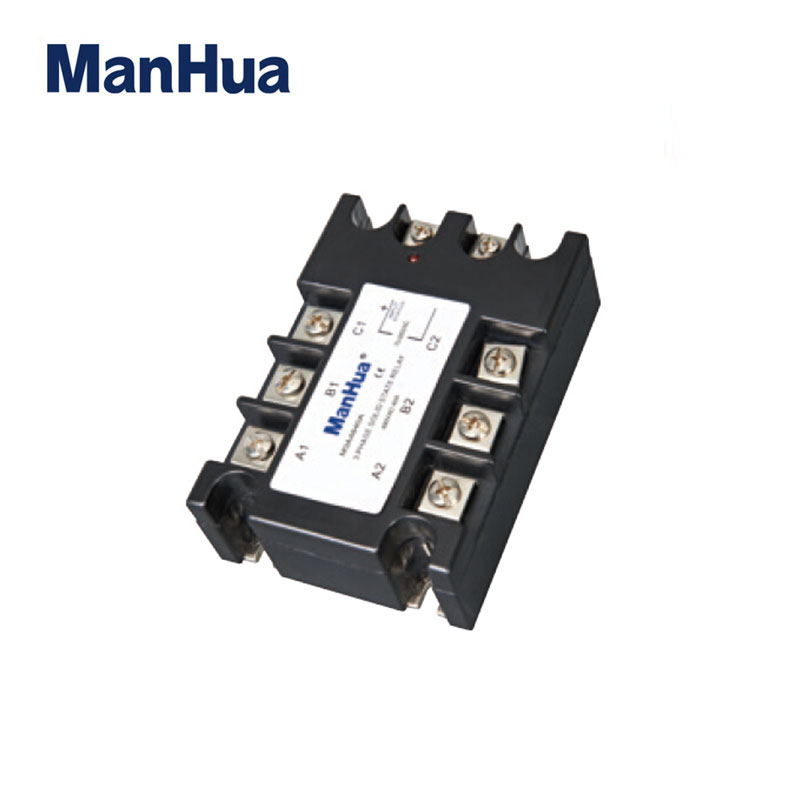

Appearance
Type	Basic Type M3D 38 A	Enhanced Type M3D 48 A	Enhanced Type M3D 120 A	Basic Type M3A 48 A
Load Current	10A、15A、20A、25A 、30A 、 40A 、 50A、60A、75A、80A、 100A 、120A	150A、200A	10A、15A、20A、25A 、 30A 、 40A 、50A、60A、75A、 80A、 100A 、120A	10A、15A、20A、25A 、 30A 、 40A 、50A、60A、75A、80A 、 100A 、120A
Load Voltage	380VAC	480VAC	1200VAC	480VAC
Control Voltage	3-32VDC	3-32VDC	3-32VDC	70-280VAC
Control Current	10-68mA	10-68mA	10-68mA	AC≤12mA
On Voltage	≤1.8V	≤2V	≤2V	≤1.8V
Off Leakage Current	≤10mA	≤10mA	≤10mA	≤10mA
On-off Time	≤10ms	≤10ms	≤10ms	≤10ms
Dielectric Strength	2500VAC	2500VAC	2500VAC	2500VAC
Insulation Resistance	1000MΩ/500VDC	1000MΩ/500VDC	1000MΩ/500VDC	1000MΩ/500VDC
Ambient Temperature	-30℃~+75℃	-30℃~+75℃	-30℃~+75℃	-30℃~+75℃
Mounting Methods	Screw mount	Screw mount	Screw mount	Screw mount
The Work Instructions	LED	LED	LED	LED
Weight	450g	450g	450g	450g

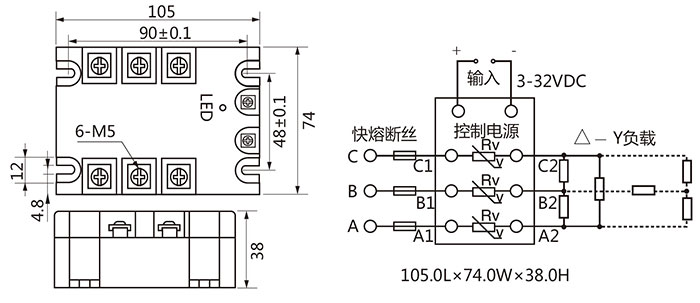

Wiring Drawing(mm)
Instruction	1、load current 10A,should install radiator,upwards 40A should add fan for force cooling or water cooling. 2、when using lnductive load, please add a varistor at the output side, the value is 1.6-1.9 mutiple of load voltage.
