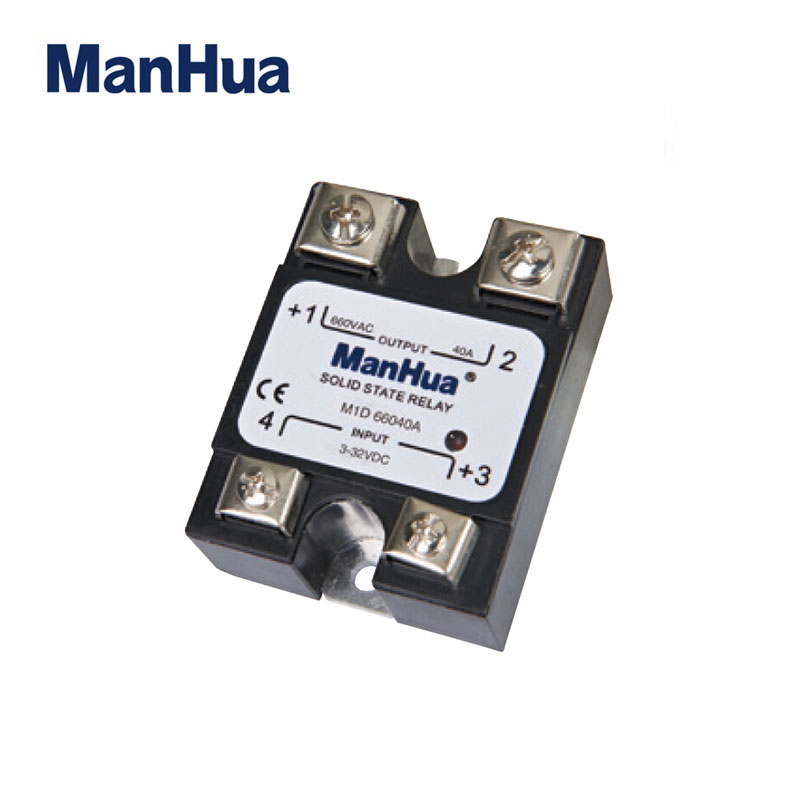

Type: Enhanced Type M1D 66 A

Load Current: 10A、20A、25A、40A、50A、60A、75A、80A、90A、100A、120A

Load Voltage: 660VAC

Control Voltage: 3-32VDC

Control Current: DC3-25mA

On Voltage: ≤1.5V

Off Leakage Current: ≤2mA

On-off Time: ≤10ms

Dielectric Strength: 2500VAC

Insulation Resistance: 1000MΩ/500VDC

Ambient Temperature: -30℃~+75℃

Mounting Methods: Screw mount

The Work Instructions: LED

Weight:  135g

Wiring Drawing(mm):

Instruction:

1、load current 10A,should install radiator,upwards 40A should add fan for force cooling or water cooling.

2、when using lnductive load, please add a varistor at the output side, the value is 1.6-1.9 mutiple of load voltage.

Note: □ Means load current
