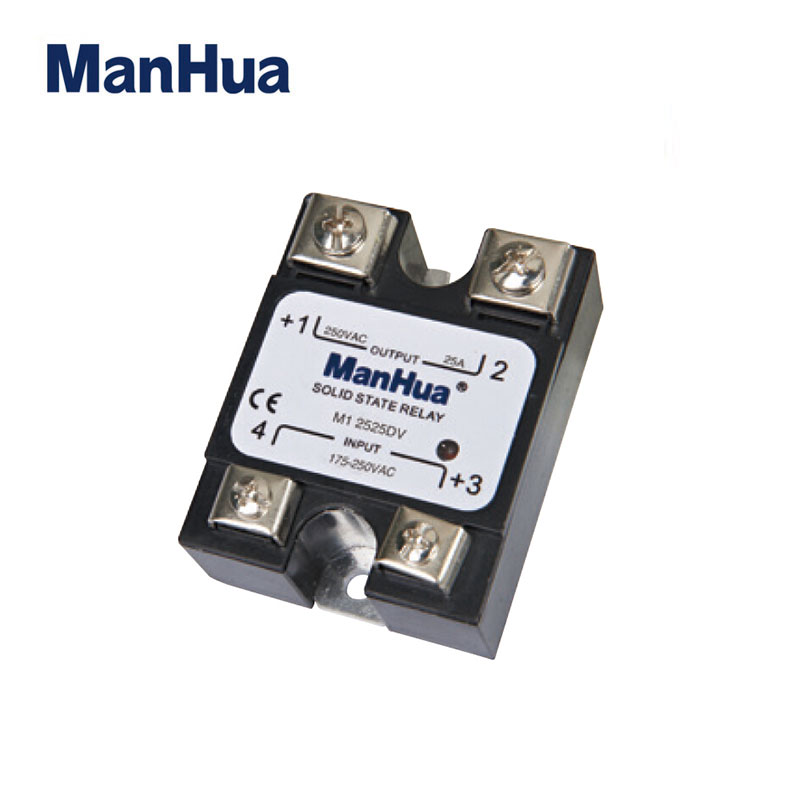

Single Phase AC Solid State Voltage Regulator M1 25 DV

Type: M1 25 DV
Load Current: 10A、25A、40A、60A、75A、90A
Load Voltage: 175~250VAC Request quotation

Type: M1 25 DV

Load Current: 10A、25A、40A、60A、75A、90A

Load Voltage: 175~250VAC

Control Voltage: Voltage regulator control

Control Current:DC4-20mA

On Voltage: ≤ 1.5V

Off Leakage Current: ≤4mA

On-off Time: ≤ 10ms

Dielectric Strength: 2000VAC

Insulation Resistance: 500MΩ/500VDC

Ambient Temperature: -30℃~+75℃

Mounting Methods: Screw mount

The Work Instructions: LED

Weight: 90g(10A,25A), 135g(40A above)

Wiring Drawing(mm):


Instruction:

1、load current 10A,should install radiator,upwards 40A should add fan for force cooling or water cooling.

Note: □ Means load current
