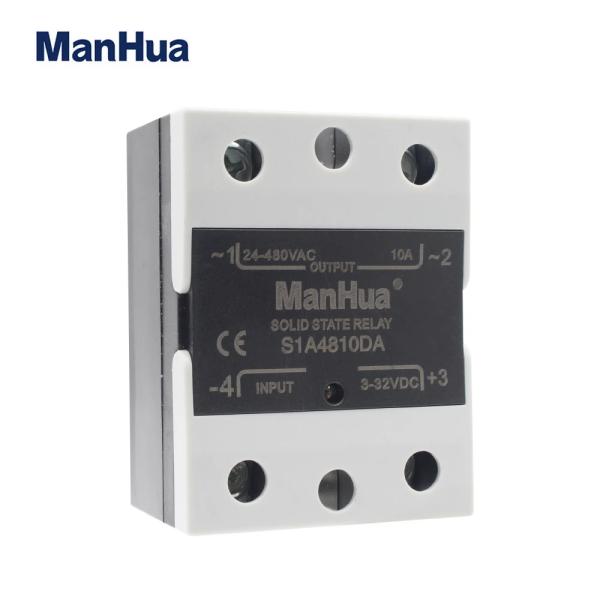

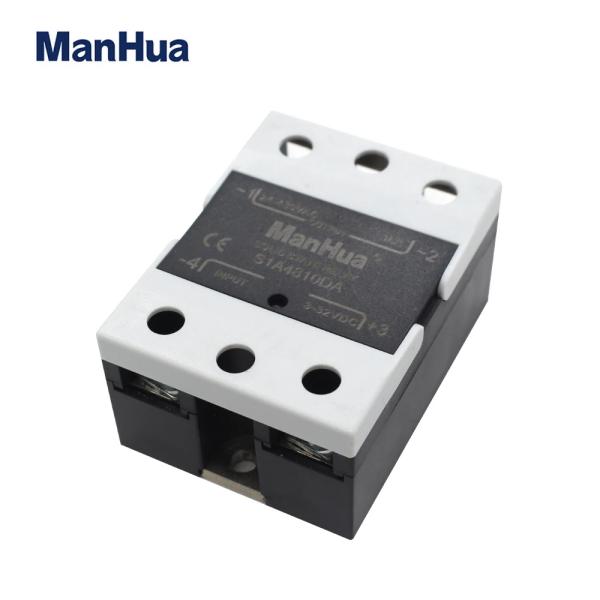

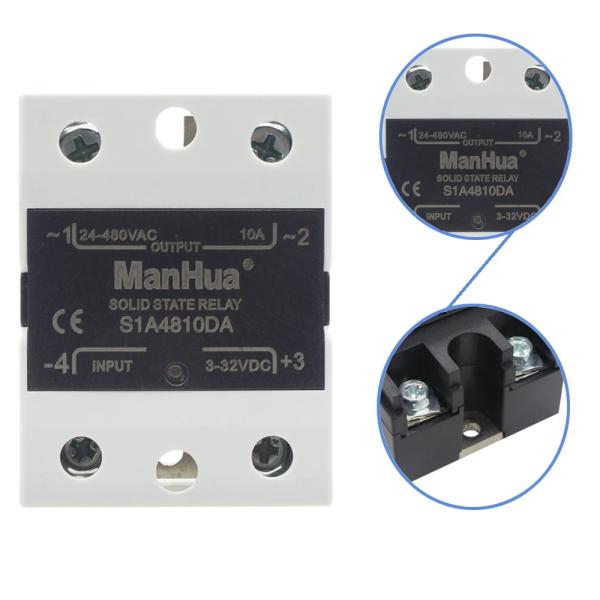

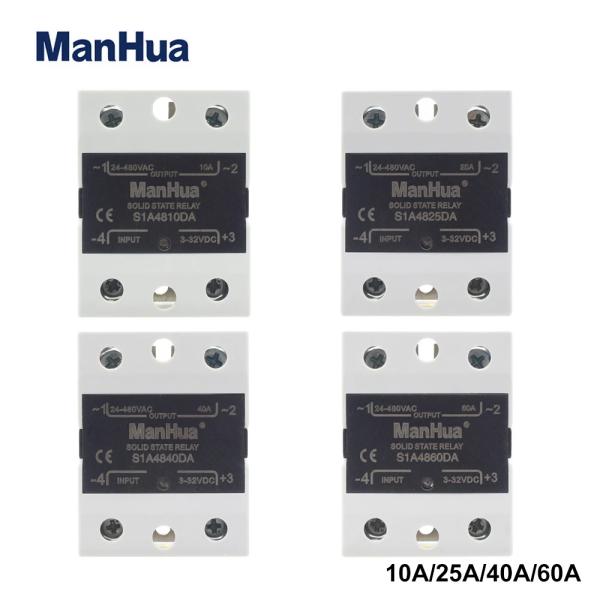

ManHua SSR DC-AC 10DA/25DA/40DA/60DA Single phase Solid state relay Input 3-32VDC Output 24-480VAC

Specification:

Load Current:10A/25A/40A/60A

Load Voltage:24~480VAC

Control Voltage:3~32VDC

On Voltage:≤ 1.5VAC

Off Leakage Current:≤4MA

On-off Time:≤ 10MS

Dielectric Strength:2500VAC

Insulation Resistance:100M Ω /500VDC

Ambient Temperature:-25~+75°C

Work instruction:LED

Features:

Small volume ,small input power, non-contact,sparkless, noiseless, non-machinery wear, anti-vibration and the long life.

Application:

With a switch no spark, no noise,high switching speed,anti-corrosion,moisture-proof,anti-vibration,long life.high reliability,electromagnetic compatibility and other characteristics.It can be widely used in aerospace,marine,household appliances,machine tools,telecommunications,automobile,mining,etc.automation and control area.
