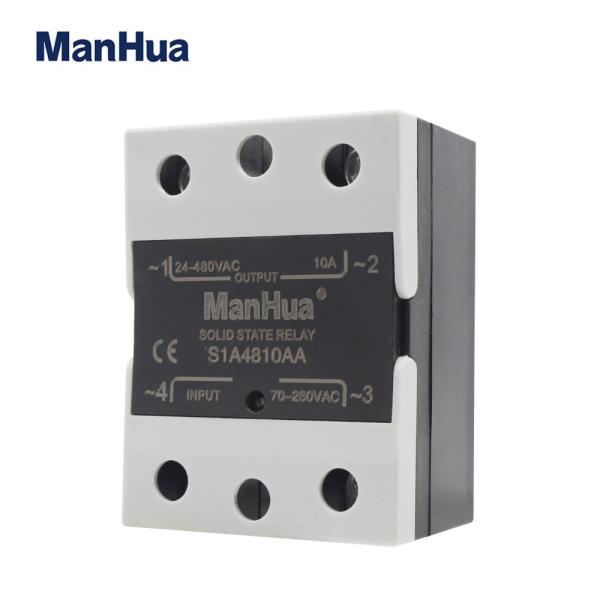

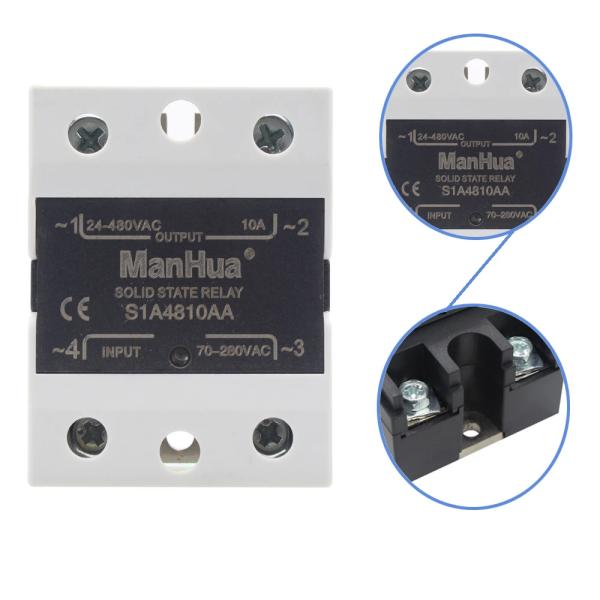

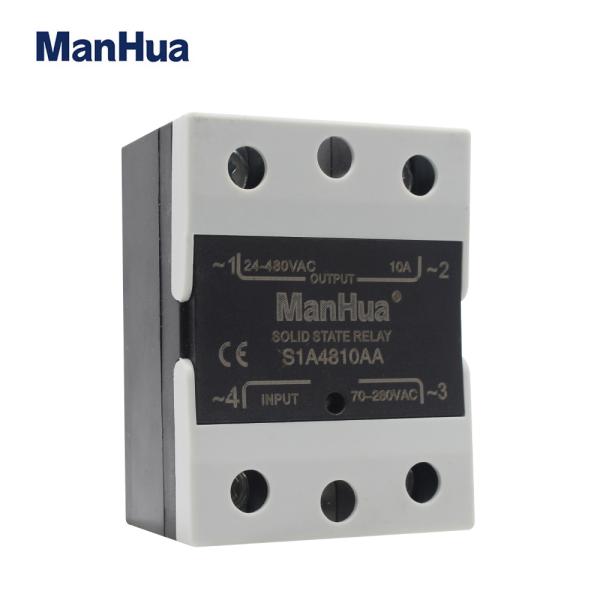

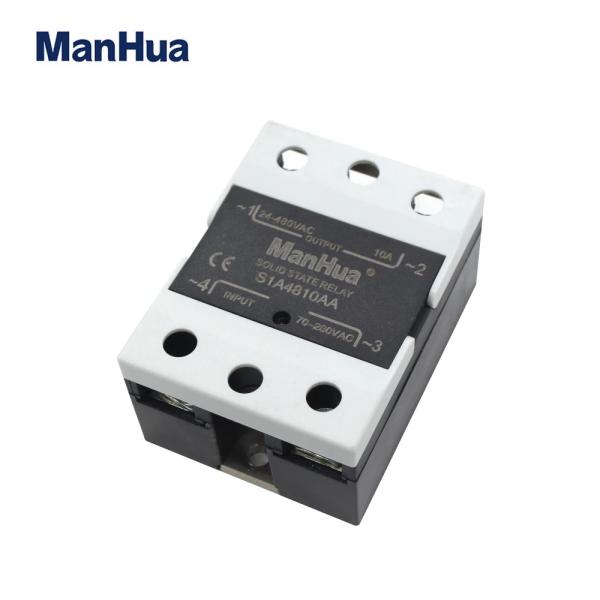

S1A4810AA/S1A4825AA/S1A4840AA/S1A4860AA Single Phase Solid State Relay SSR AC-AC 10A/25A/40A/60A 70-280VAC Input to 24-480VAC Output

Power Source: AC Voltage: 220V
is_customized: Yes Usage: General Purpose
Model Number: S1A4810AA/S1A4825AA/S1A4840AA/S1A4860AA Contact Load: Low Power
Protect Feature: Sealed Theory: Solid State Relay
Brand Name: ManHua Input: 70-280VAC
Output: 24-480VAC Ambient Temperature: -25 Celsius~+75 Celsius
The Work Instruction: LED On-off Time: less than 10mS
Off Leakage Current: less than 4mA Request quotation
Video PDF Download Contact us

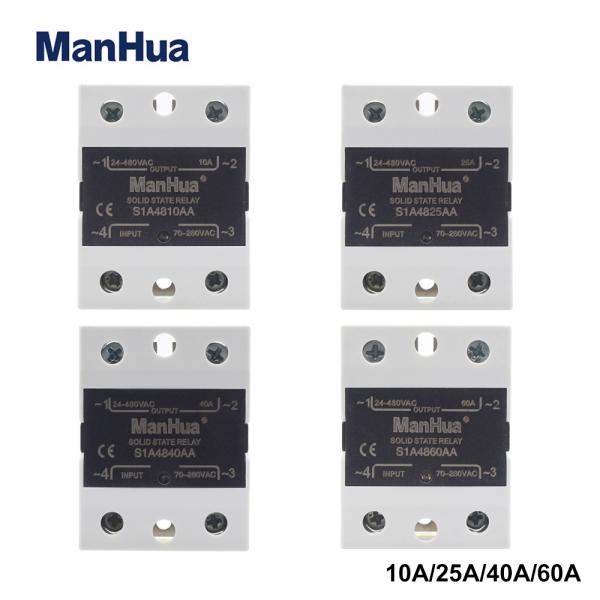

ManHua Single Phase Solid State Relay SSR AC-AC 10A/25A/40A/60A 70-280VAC Input to 24-480VAC Output

11

Specification:

Load Current:10A/25A/40A/60A

Load Voltage:24~480VAC

Control Voltage:70~280VAC

On Voltage:≤ 1.5VAC

Off Leakage Current:≤4MA

On-off Time:≤ 10MS

Dielectric Strength:2500VAC

Insulation Resistance:100M Ω /500VDC

Ambient Temperature:-25~+75°C

Work instruction: LED



Feature:

1. High reliability, high efficiency and long lifespan

2. No electric spark, no noise and no contact

3. Fine electro magnetic interference, high sensitivity and fast switching speed

4. Low drive voltage and current

5. Unique shape and novel structure

6. Especially suitable for corrosion, moisture, dust resistant and other harsh environments

7. Widely used in many automatic control systems



Application:

Industrial automation installment

Computer peripheral connection

AC motor control

Automatic fire control and security system

Street light,signal light,traffic light,etc
