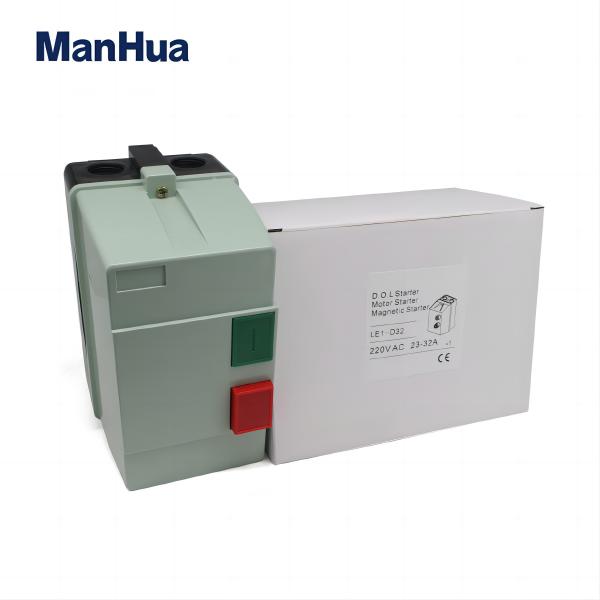

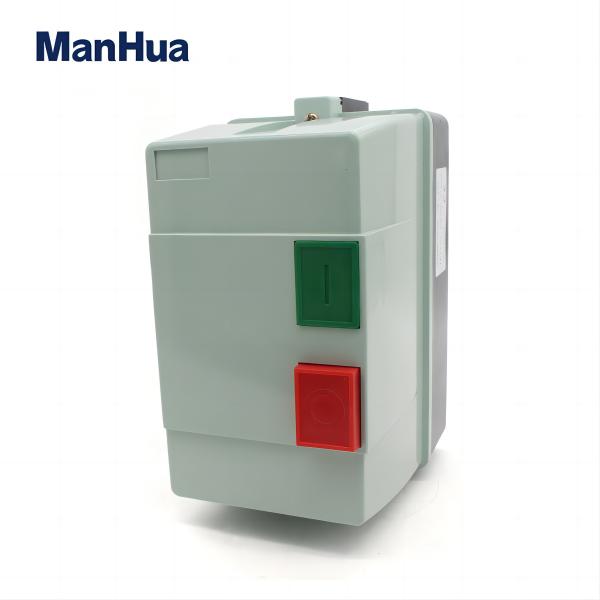

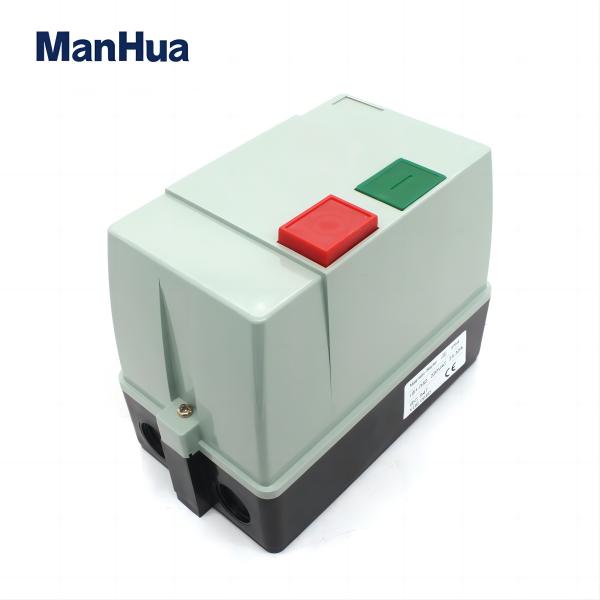

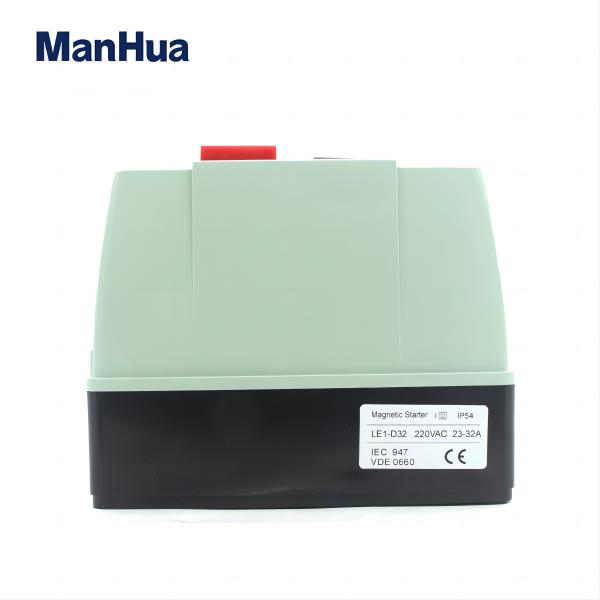

ManHua 3-phase Motor Magnetic Starter AC Contactor Protect Over Load or Lack Phase Circuit LE1-D12/D18/D25/D32

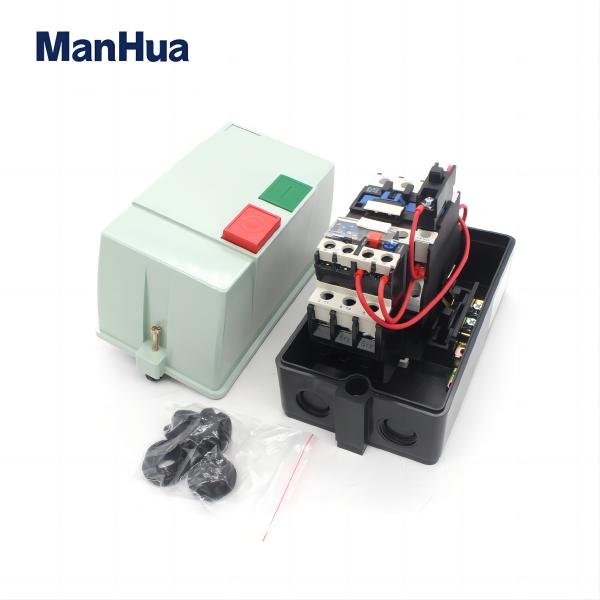

LE1-D12 Contactor Match Relay Contactor Timer 220V 12A 50Hz for AC Motor 690V insulate class is mainly composed of four parts:
(1) the electromagnetic system, including attracting coil, a movable iron core and the static iron core;
(2) the contact system, which comprises three groups of main contact and one to two groups of normally open, normally closed auxiliary contact and the moving iron core, it is together mutual linkage;
(3) out AC contactor arc device, generally larger capacity is provided with an arc extinguishing device, in order to quickly cut off from the main contact arc, burnt out;
(4) insulation casing and accessories, all kinds of spring, a transmission mechanism, a short circuit ring, terminal etc..

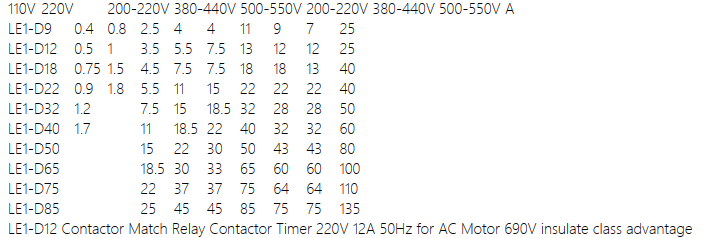

LE1-D12 Contactor Match Relay Contactor Timer 220V 12A 50Hz for AC Motor 690V insulate class Main technical data

typerated capacityrated current AC1 category
single phase motorthree phase motor AC3 categorythree phase motor AC3 category

1.20 years global leading profession manufacture of ac contactor
2.Long life high reliability
3.It will match to thermal relay ,protect over load or lack phase circuit
4.Fast delivery : you will get the order when you need it
5.OEM is warmly welcome
6.3 line assemble line ,each day will make more than 100000pcs
7.Convenient : 45 minutes to wenzhou airport
8.Rated insulate voltage 1000V

LE1-D12 Contactor Match Relay Contactor Timer 220V 12A 50Hz for AC Motor 690V insulate class function
1.saving power
2.No temperature rise
3.Auxiliary contact without vibration
4.Long life, high reliability
5.Anti electromagnetic interference
6.Intelligent anti electricity dazzlin
