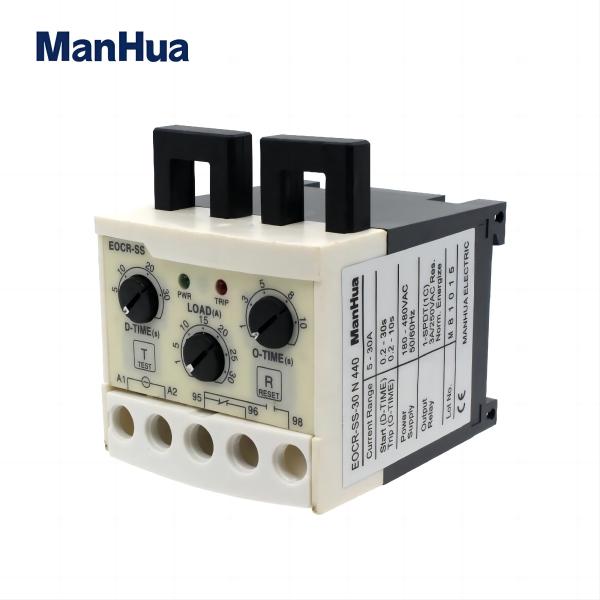

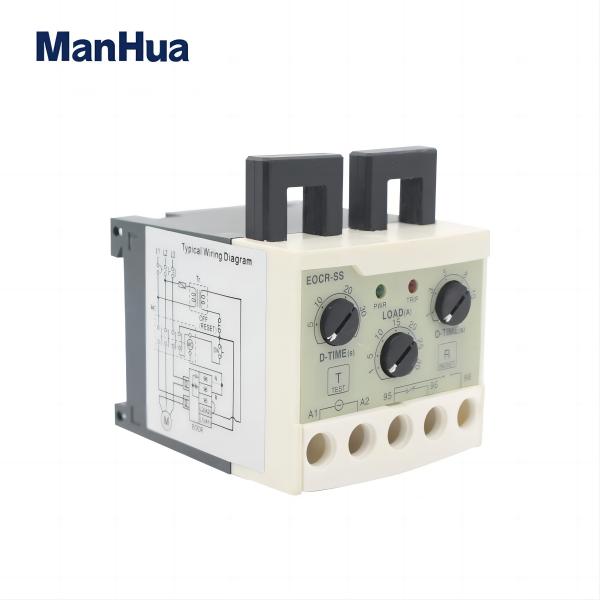

EOCR-SS 5-30A overload phase loss protection relay independently adjustable starting trip delay electronic overload relay module

Power Source: AC Voltage: 600VAC,50/60Hz
is_customized: Yes Usage: Protective
Model Number: EOCR-SS Contact Load: Low Power
Protect Feature: Sealed Theory: Electromagnetic Relay
Brand Name: ManHua Origin: Mainland China
Current Range: 5-30A Control Voltage: 90-260VAC, 320-480VAC
Rated voltage: 600VAC,50/60Hz Current Sensing: 2 CTs
Power Consumption: Under 2W Starting delay time: 0.2-30 seconds
Trip delay time: 0.2-10 seconds Mounting: 35mm DIN Rail; Panel Request quotation

Video

PDF Download

Description
feedback

EOCR-SS 5-30A overload phase loss protection relay independently adjustable starting trip delay electronic overload relay module

Function:

1.Overload and Phase Loss Protection

2.Independently adjustable starting and Trip Delay

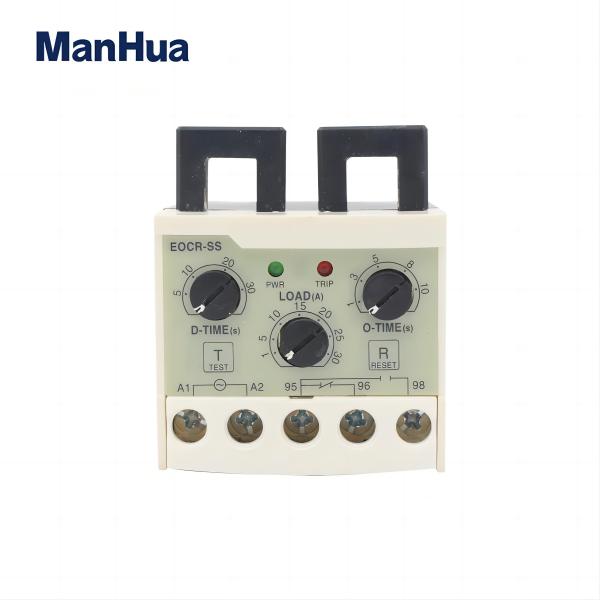

3.Visual Current Setting Aid and Trip Indication(LED)

4.Flexible Power Supply(90 to 260VAC or 320 to 480VAC)

5.Fail Save Protection(N type)

6.Electronic Sheer-pin function

Technical Data:

Model	EOCR-SS
Current Range	5-30A
Rated Voltage	600VAVC
Operating Time	D-TIME 0.2-30sec
Operating Time	O-TIME 0.2-10sec
Time-Current Characteristic	Definite
Operating (Trip) Indication	2-LED
Mount	35mm Din-rail/Panel
Power consumption	Under 2W
Humidity	30-85%RH Non-condensing

Specification:

Model	EOCR-SS
Current range	05)0.5-5A
	30)5-30A
	60)5-60A
	Over 60A to 800A ,05 fitted w/external CTs
Rated voltage	440VAC,50/60Hz
Operating setting	D-TIME		0.2-30 seconds
	O-TIME		0.2-10 seconds
Accuracy	Current		±10%
	Time		±15% of max.time set value
Time characteristics	Definite time
Control voltage	220)Voltage Free (90~260)VAC,50/60Hz 221)440)Voltage Free (1890~480)VAC,50/60Hz Other voltage optional.
Rate Voltage	600VAC,50/60Hz
Current sensing	2 CTs
Output contacts	Contacts		SPDT 3A/250AVC Resistive
	Condition	N Type	Normally energized:95 - 98close
		R Type	Normally de-energized:95 - 98close
Reset	Manual or remote electrical by interrupting supply
Environment	Temp.	Run	-20~60 deg℃
		Store	-30~80 deg℃
	Humid		30~85% RH,non-condensing
Insulation	Between casing and circuits:Over 10MΩwith DC 500V megger
Dielectric strength	1)Between casing and circuits:AC 2000V,60Hz,1min
	2)Between contacts: AC 1000V,60Hz,1min
	3)Between circuits:AC 2000V,60Hz.1min
Power consumption	Under 2W
Mounting	35mm Din Rail(D) or Pane(P)
