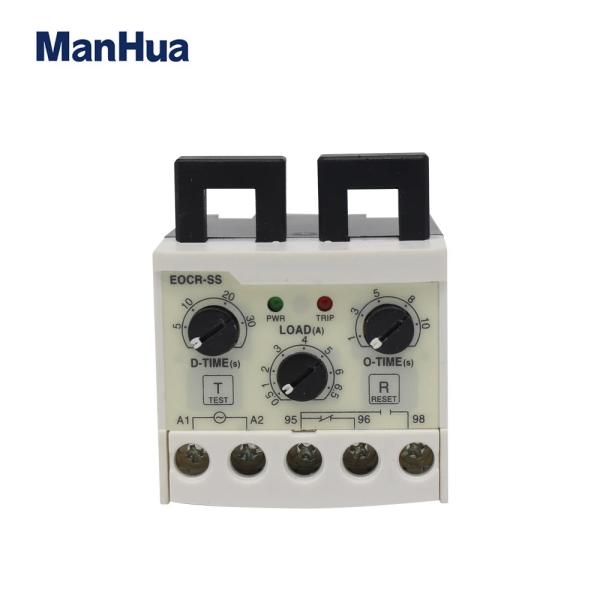

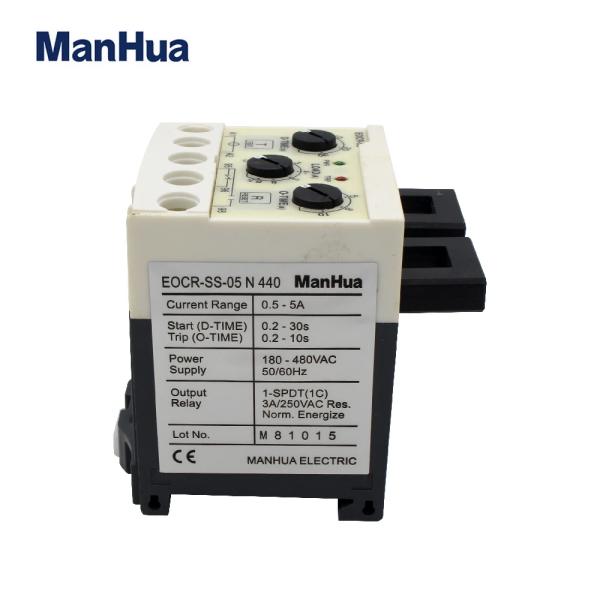

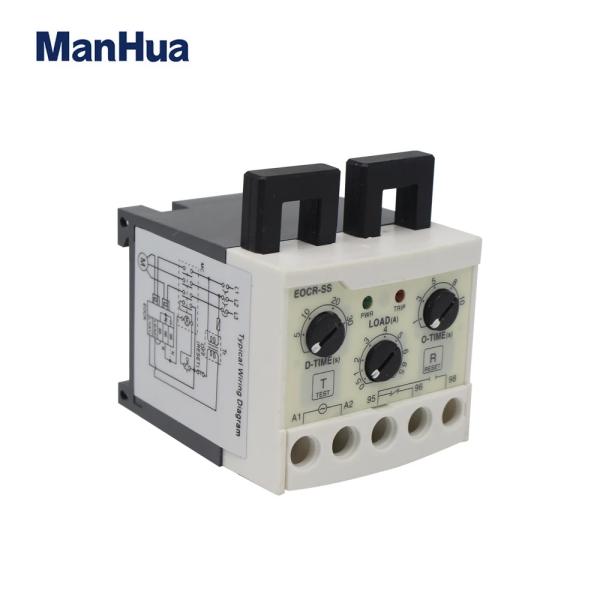

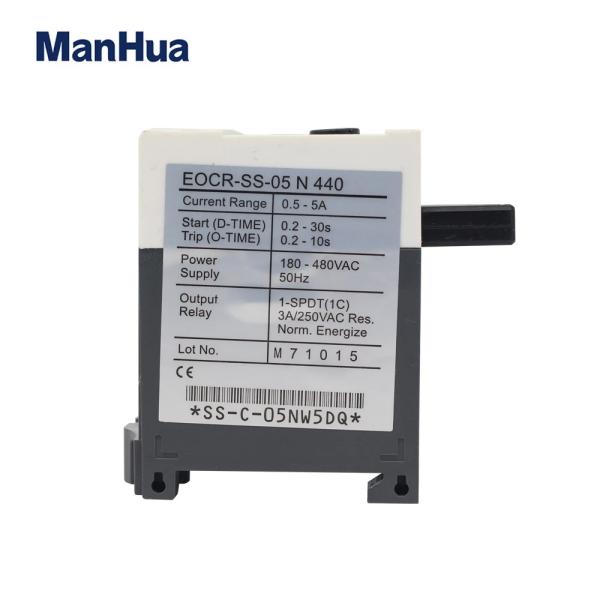

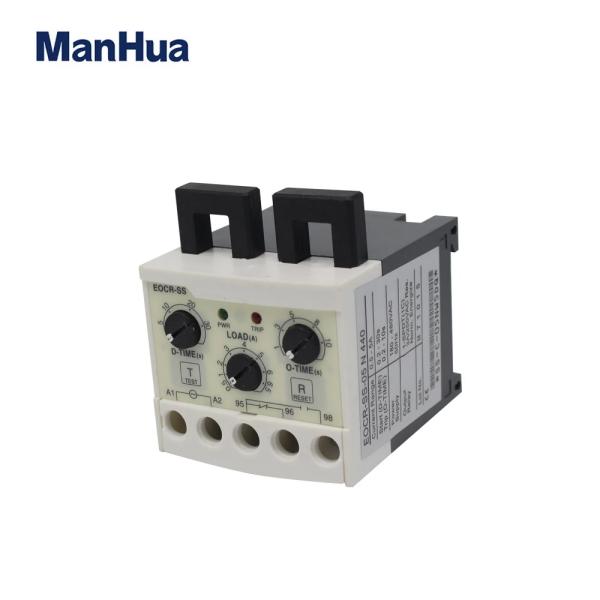

EOCR-SS-05 0.5-5A overload phase loss protection relay independently adjustable starting trip delay electronic overload relay

Power Source: AC Voltage: 600VAC,50/60Hz
is_customized: Yes Usage: Protective
Model Number: EOCR-SS-05 Contact Load: Low Power
Protect Feature: Sealed Theory: Electromagnetic Relay
Brand Name: ManHua Origin: Mainland China
urrent Range: 0.5-5A Control Voltage: 90-260VAC, 320-480VAC
Rated voltage: 600VAC,50/60Hz Current Sensing: 2 CTs
Power Consumption: Under 2W Starting delay time: 0.2-30 seconds
Trip delay time: 0.2-10 seconds Mounting: 35mm DIN Rail; Panel Request quotation

EOCR-SS 0.5-5A overload phase loss protection relay independently adjustable starting trip delay electronic overload relay


Function:

1.Overload  and  Phase  Loss Protection

2.Independently adjustable starting  and  Trip  Delay

3.Visual Current Setting Aid and Trip Indication(LED)

4.Flexible Power Supply(90 to 260VAC or 320 to 480VAC)

5.Fail Save Protection(N type)

6.Electronic Sheer-pin function



Technical Data:

Model

EOCR-SS

Current Range

0.5-5A

Rated Voltage

600VAVC

Operating Time

 D-TIME  0.2-30sec

O-TIME  0.2-10sec

Time-Current Characteristic

Definite

Operating (Trip) Indication

2-LED

Mount

35mm Din-rail/Panel

Power consumption

Under  2W

Humidity

30-85%RH   Non-condensing


Specification:

Model

EOCR-SS

Current range

05)0.5-5A

30)5-30A

60)5-60A

Over 60A to 800A ,05 fitted w/external CTs

Rated voltage

440VAC,50/60Hz

Operating setting

D-TIME

0.2-30 seconds

O-TIME

0.2-10 seconds


Accuracy


Current

±10%

Time

±15% of max.time set value

Time characteristics

Definite time

Control voltage

220)Voltage Free (90~260)VAC,50/60Hz

  221)440)Voltage Free (1890~480)VAC,50/60Hz

Other voltage optional.

Rate Voltage

600VAC,50/60Hz

Current sensing

2 CTs

Output contacts

Contacts

SPDT 3A/250AVC Resistive

Condition

N Type

Normally energized:95 - 98close

R Type

Normally de-energized:95 - 98close

Reset

Manual or remote electrical by interrupting supply

Environment

Temp.

Run

-20~60 deg℃

Store

-30~80 deg℃

Humid

30~85% RH,non-condensing

Insulation

Between casing and circuits:Over 10MΩwith DC 500V megger


Dielectric strength

1)Between casing and circuits:AC 2000V,60Hz,1min

2)Between contacts: AC 1000V,60Hz,1min

3)Between circuits:AC 2000V,60Hz.1min

Power consumption

Under 2W

Mounting

35mm Din Rail(D) or Pane(P)
