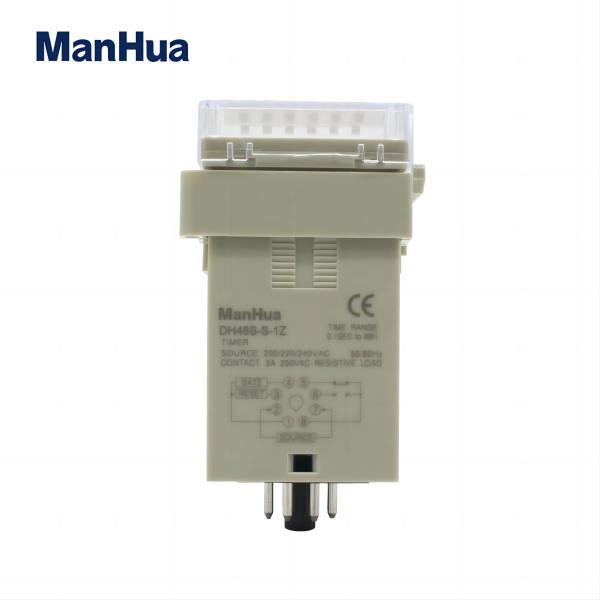

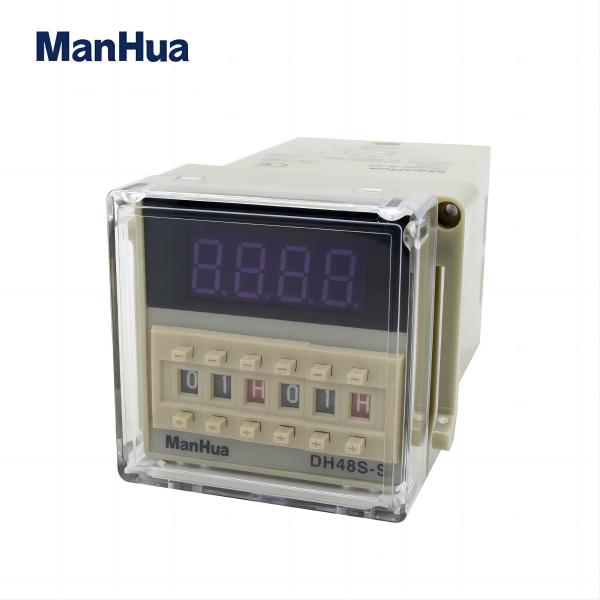

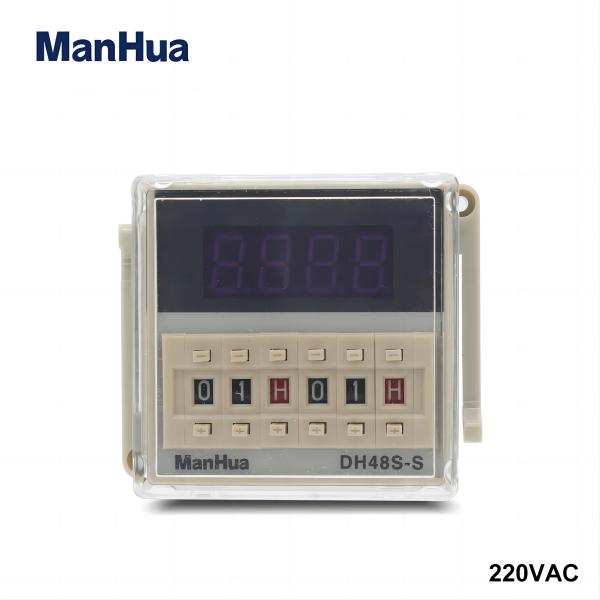

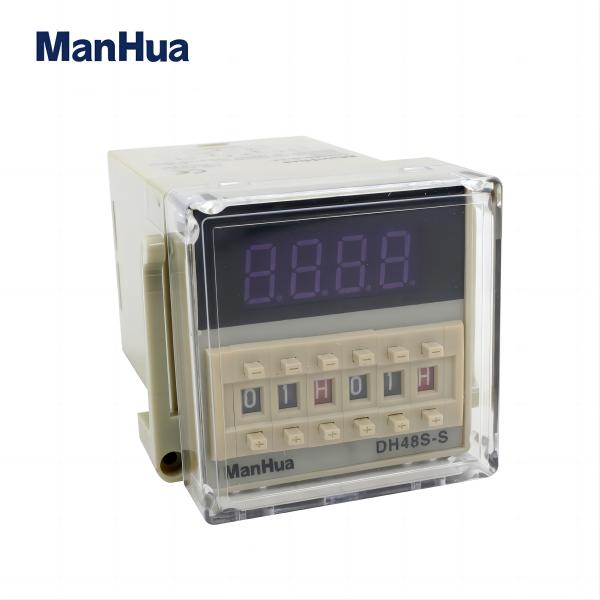

DH48S-S/1Z 0.1S-99H 220VAC On Delay Operation Timer Relay With 8 Pins Socket Base

Power Source: AC Voltage: 220V
is_customized: Yes Usage: General Purpose
Model Number: DH48S-S/1Z Contact Load: Low Power
Protect Feature: Sealed Theory: Time Relay
Brand Name: ManHua Operating Voltage: 220VAC
Contact C: 5A 250VAC Operation Mode: On delay operation
Electric Life: 100,000 times Mechanical Life: 1000,000 times

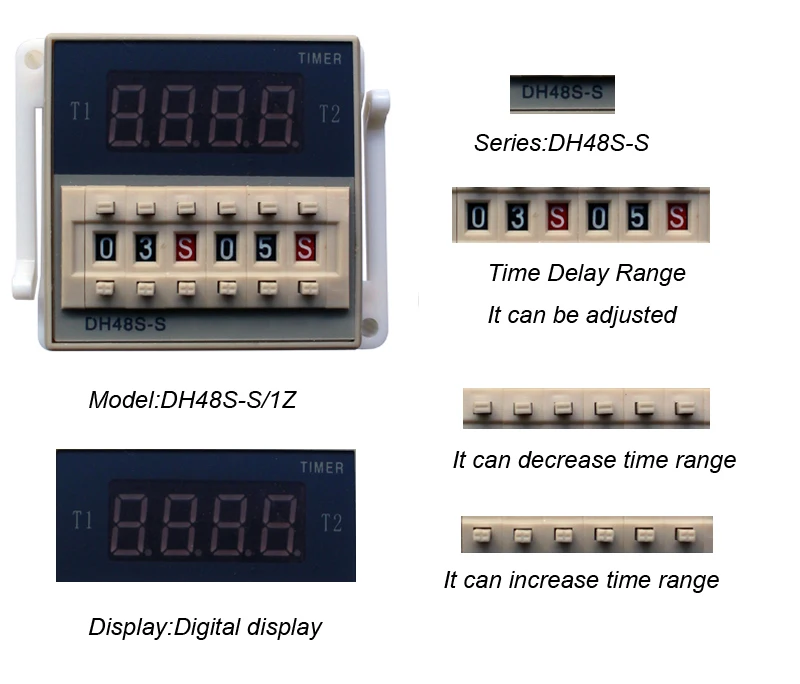

Time Delay Accuracy: Less than 0.5% Time Delay Range: 0.1S-99H
Weight: 0.2kg Dimension: 95*58*48mm

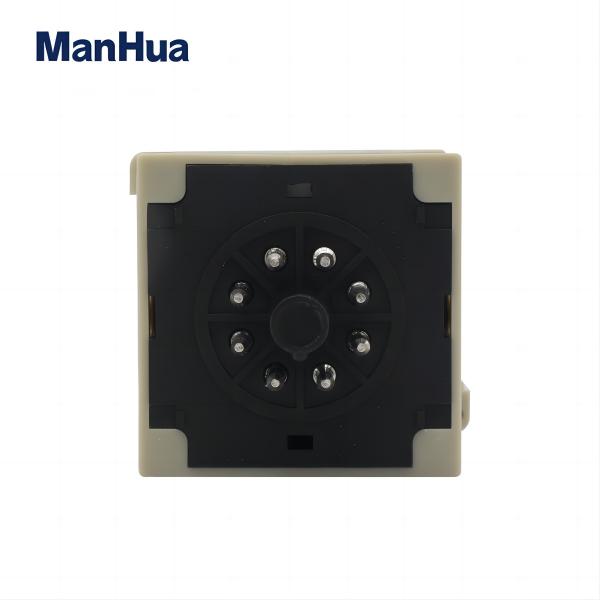

Warranty: 12 months Socket: PF083A Request quotation
