DH48S-S-2Z Digital display time relay electric delay timer 0.1S-99H LCD Display with base

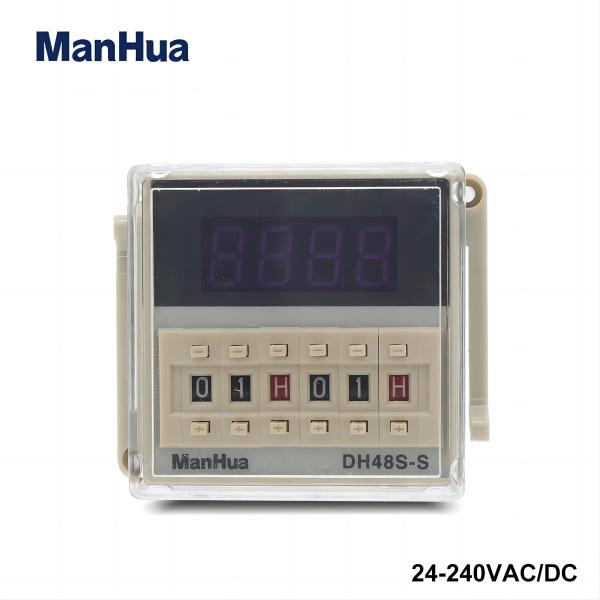

Voltage: 24-240VAC/DC is_customized: Yes
Usage: General Purpose Model Number: DH48S-S-2Z
Contact Load: Low Power Protect Feature: Sealed
Theory: Time Relay Brand Name: ManHua
Power Mode: AC/DC Electric Life: 100000
Time Delay Accuracy: Less than 0.5% Time Delay Range: 0.1S-99H
Mounting: Plug in Weight: 0.2kg Request quotation

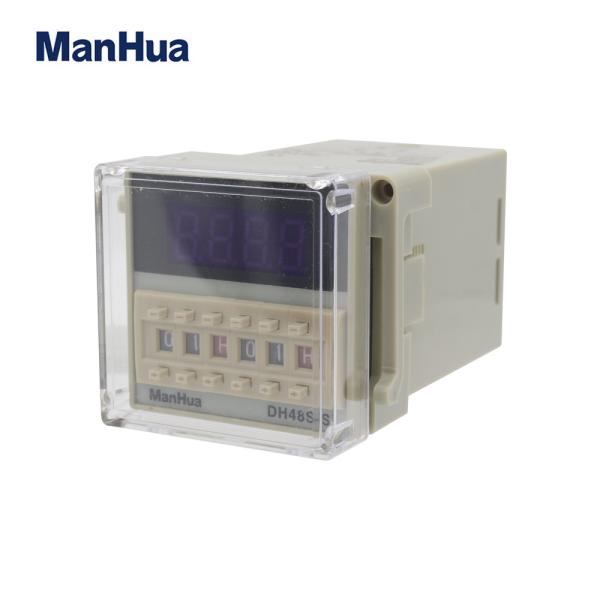

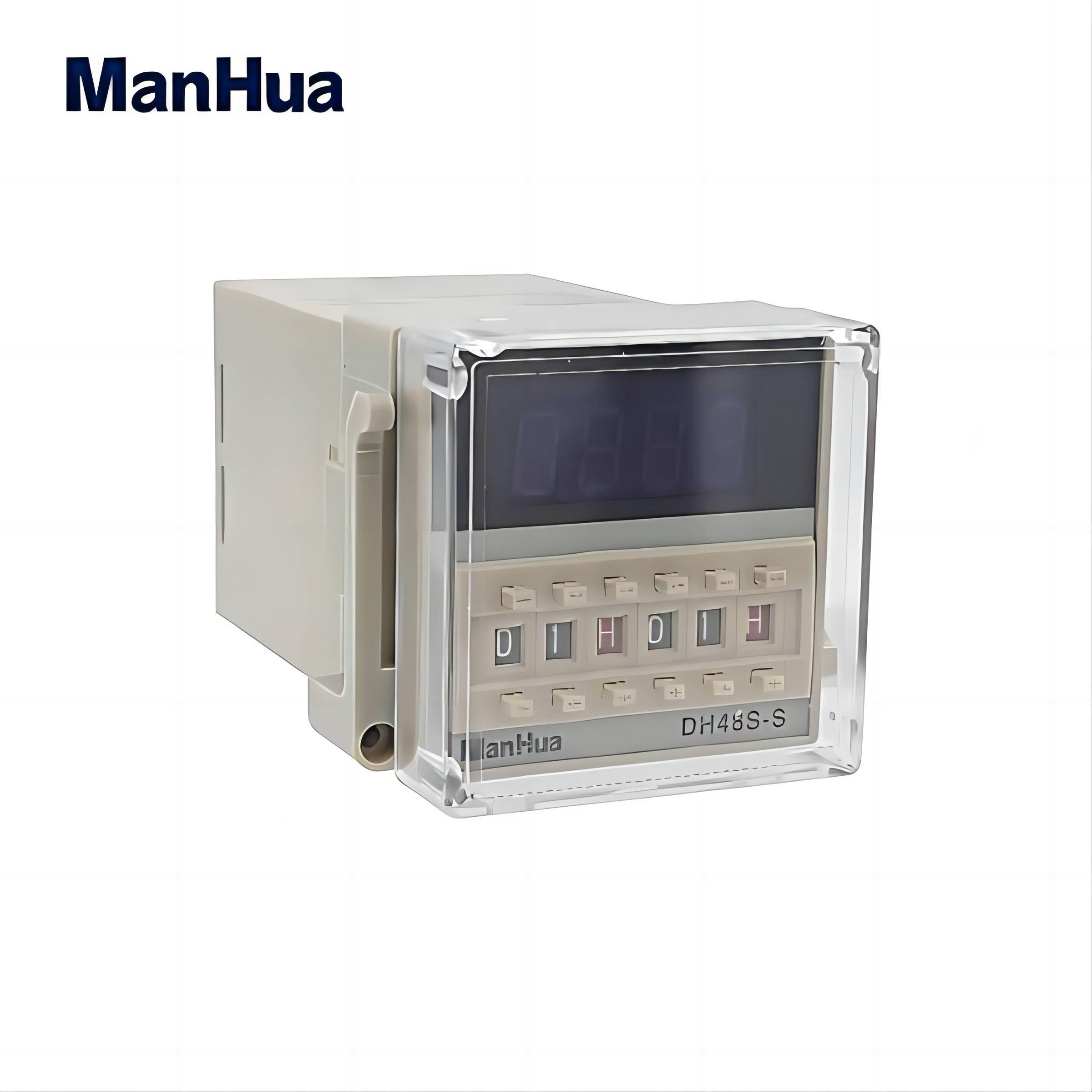

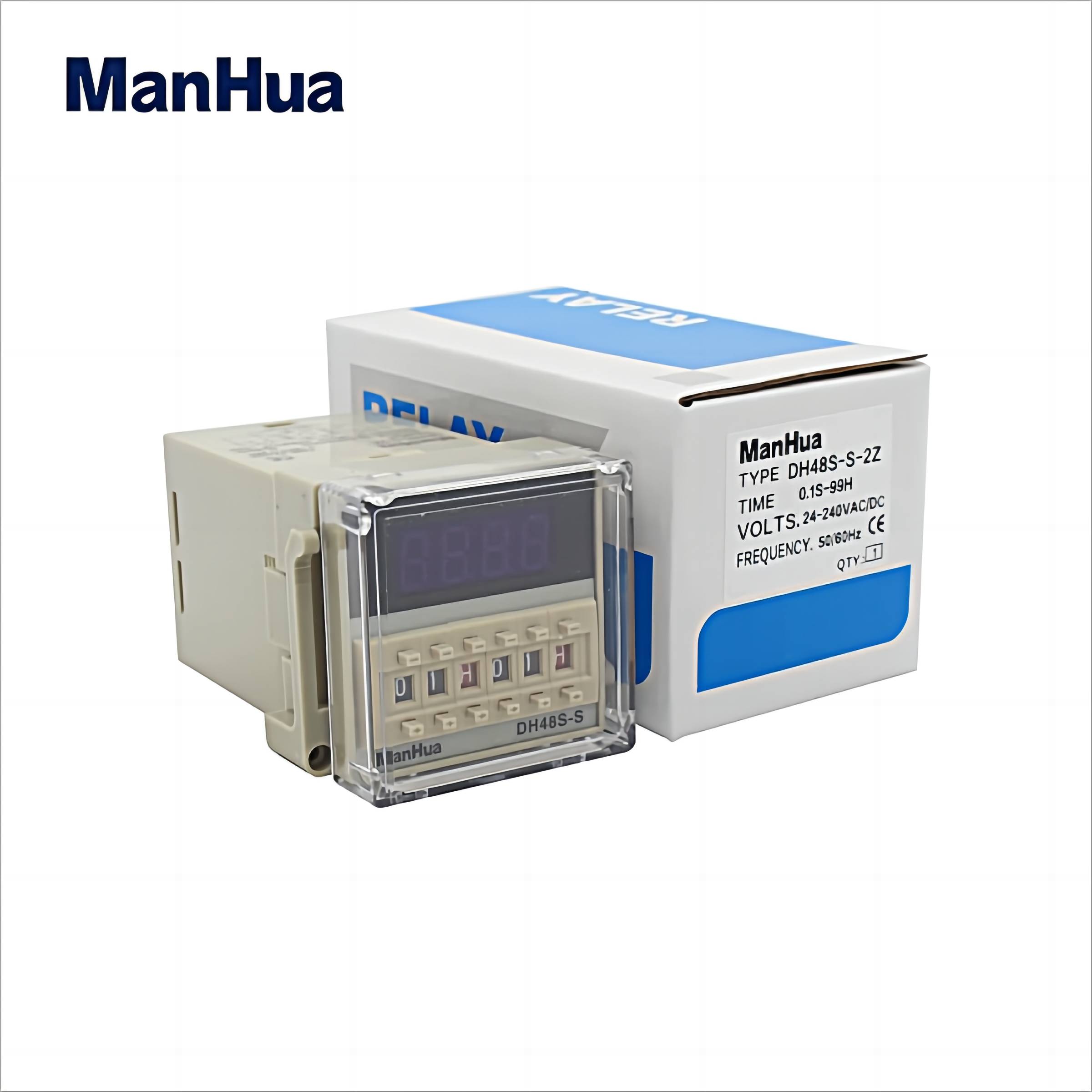

ManHua Digital display time relay DH48S-S-2Z electric delay timer 0.1S-99H LCD Display with base

product view

Features:

1. Clear LED display for accurate timing control.

2. Time range can be set freely by the dial switch, quick adjustment, easy to operate.

3. The relay is closely connected with the base, and the conductivity is excellent.

4. The time adjustable range is 0.1S-99H, which can satisfy most control requirements.

5. Integrated circuit: high quality original, craftsman welding, fully automatic control, safe and reliable work.

6. Mainly used for outdoor billboards, factory workshops, road lamps and so on.



Specification:

Condition: 100% Brand New

Item Type: Digital Time Relay

Model: DH48S-S-2Z

Delay Range: 0.1S-99H

Rated Current: 10A

Function: 2 groups of delay switches, no pause, no reset

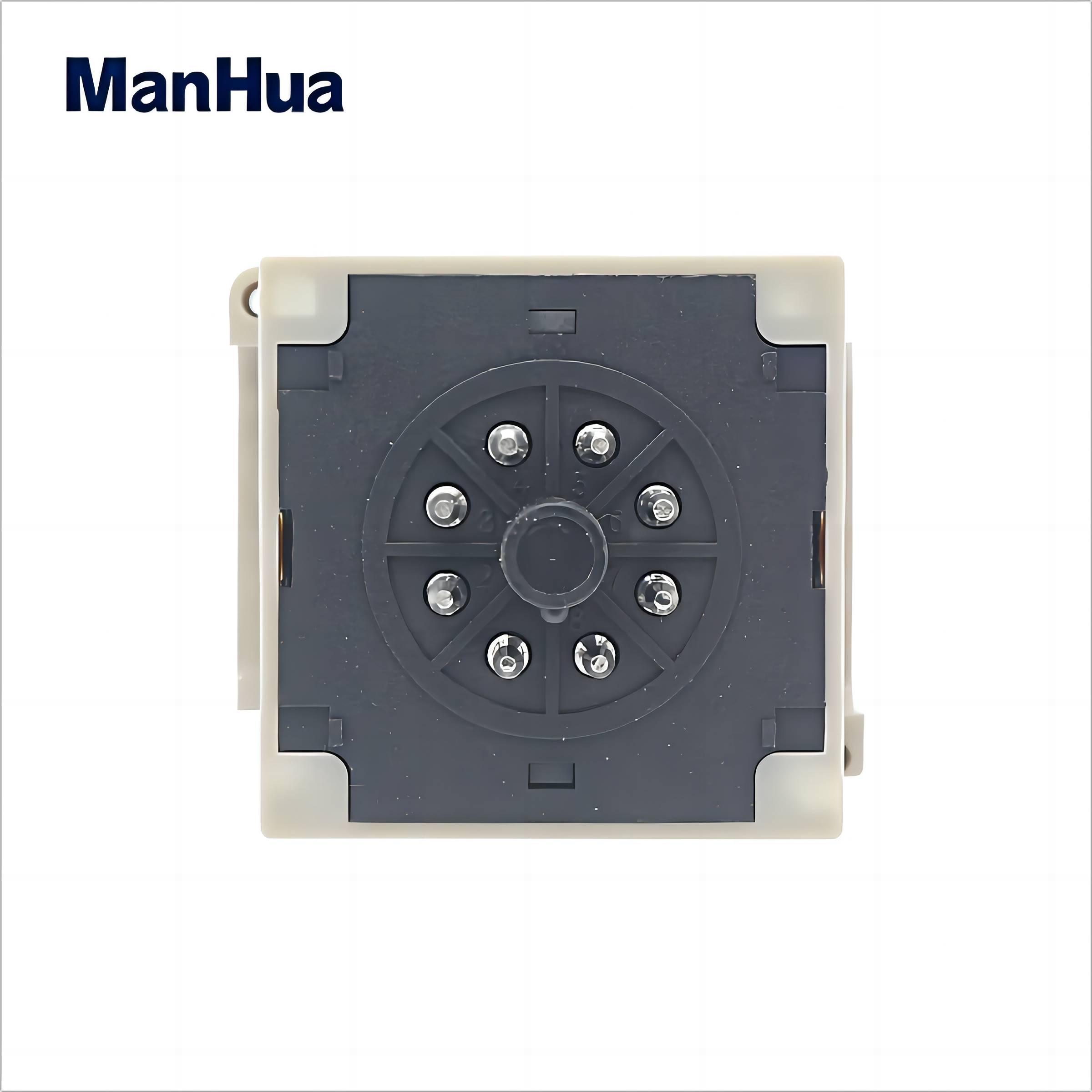

Power Connection: Round 8 Pin

Display: LCD Display

Adjustment Method: Dial Code

Power Source:85-110% Rated Voltage

Mechanical life: >10000000

Electrical Life:>100000

Operating ambient temperature:-10℃-50℃

Power consumption: ≤5W

Altitude:<2000m



Notes:

1. The actual product color may deviate from the photo due to light.

2. There may be a slight deviation in the measurement of product.





1

2



IMG_1411

About Feedback:

Dear friends: Welcome to my store, thank you! Your satisfaction is our aim, your feedback is very important for us sellers, if you are satisfied with the goods, please give us 5 star encourage if you are not 100% satisfied with the product, please be sure to contact me, please do not just hit bad review.I believe we can solve the problem together.



Quality assurance:

1.One year guarantee.

2.If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).

3.We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost(from us to your location);After 1 month of purchase, the buyer need to pay two ways of shipping cost.

4.One we get the returned items, we will send the replaced ones back as soon as possible.

5.Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts.
