AC Contactor LC1-D95 95A 220V 50/60Hz Electrical Contactor Din Rail Mounted 3P+NO+NC

is_customized: Yes Model Number: LC1-D95
Main Circuit Rating Current: 95A Main Circuit Rating Voltage: 220V
Phase: 3 Number of Pole: 3
Electricity Type: AC Brand Name: ManHua
Origin: Mainland China Certification: CE
Ith: 125A Ui: 690V
Color: Black Service life: 1-2 years
Number of the contacts: 3P+NC+NO Request quotation
Video PDF Download Contact us

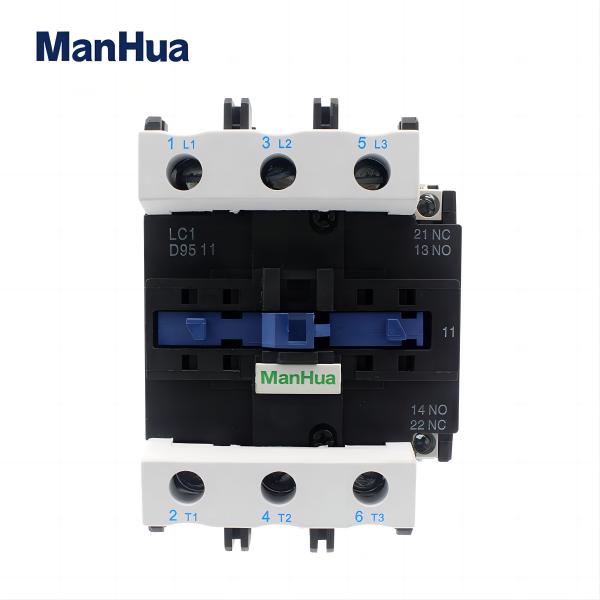

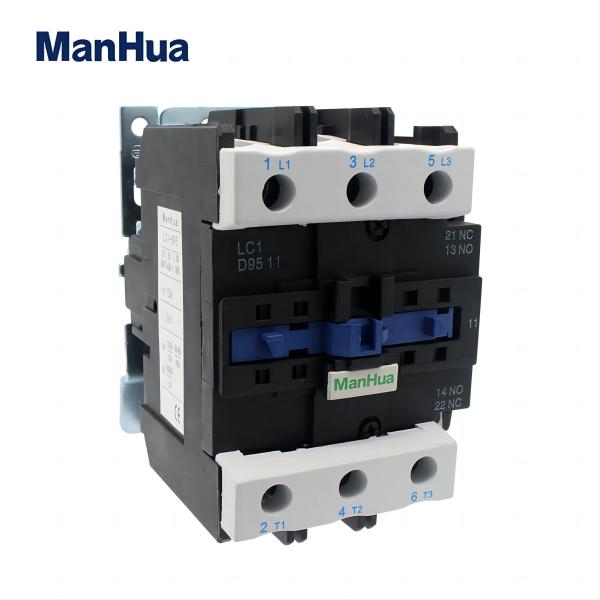

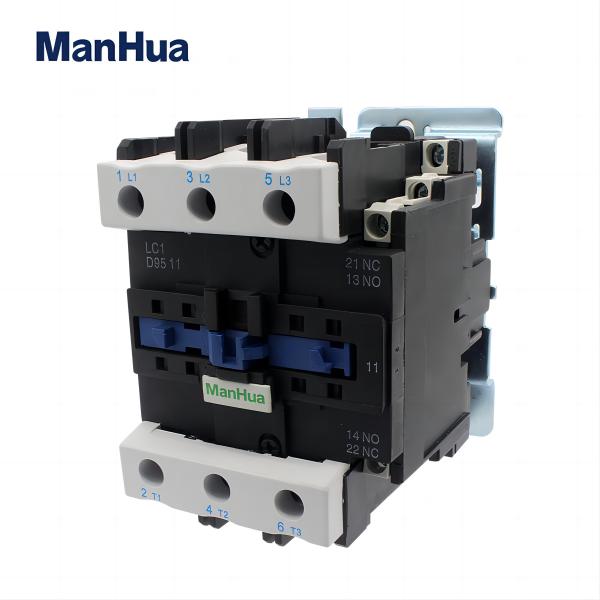

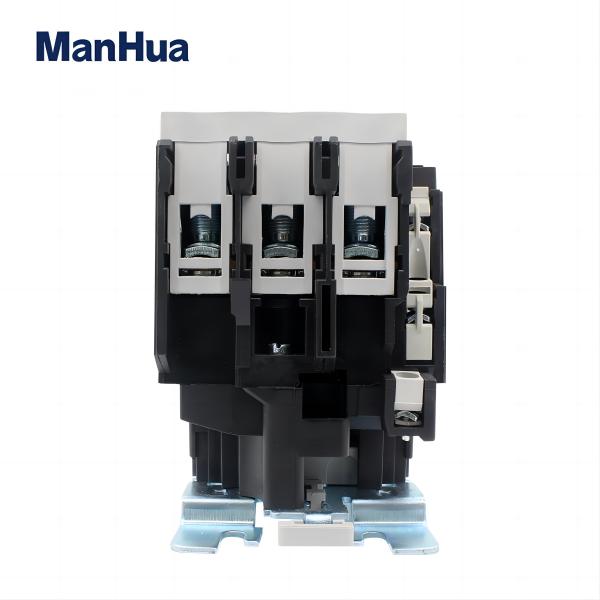

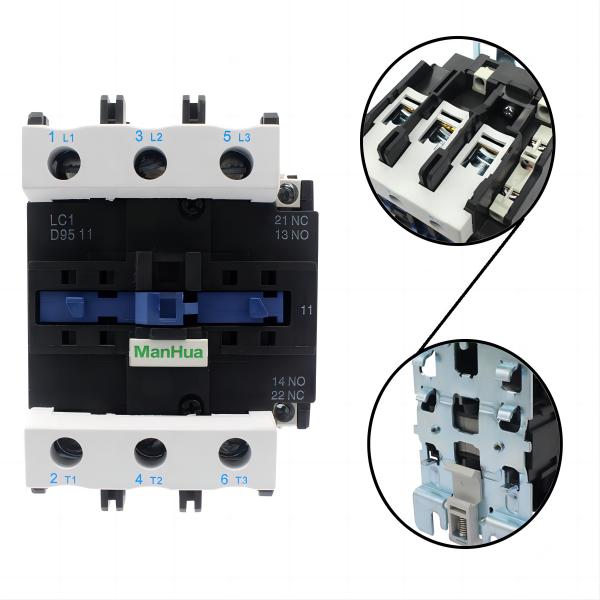

ManHua AC Contactor LC1-D95 95A 220V 50/60Hz Electrical Contactor Din Rail Mounted 3P+NO+NC

Description:

LC1 series Contactors are suitabie for using in the circuits the rated voltage up to 660v AC 50Hz or 60Hz,rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor.Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contsctor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter.


Specification:

Product Name : AC Contactor

Model Number : LC1-D95

Frequency : 50Hz/60Hz

Contact Type : NO+NC

Pole Number : 3 Pole

Conventional Thermal Current(Ith) :125A

Rated Insulation Voltage(Ui) : 690V

Rail Mounting : 35mm DIN Rail

Material : Plastic, Electrical Parts

Main Color : Black


Features:

1.With the thermal relay ,it combined into the electromagnetic starter.

2.Full set accessories.

3.Auxiliary contact group Top hung/side hung.

4.Time-delay auxiliary contact.
