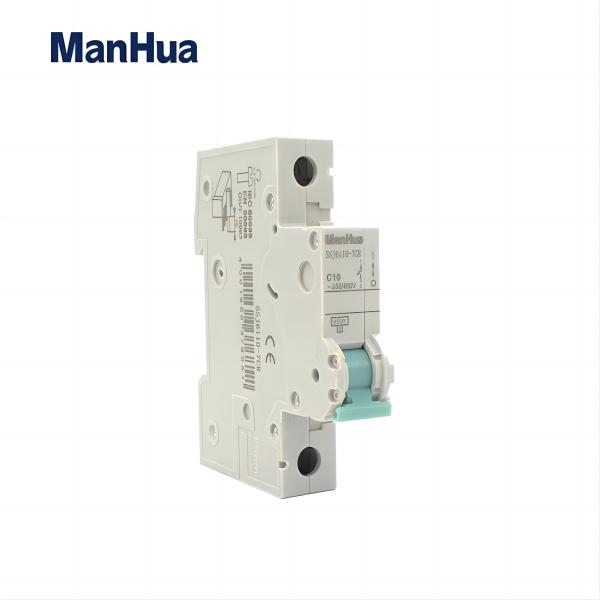

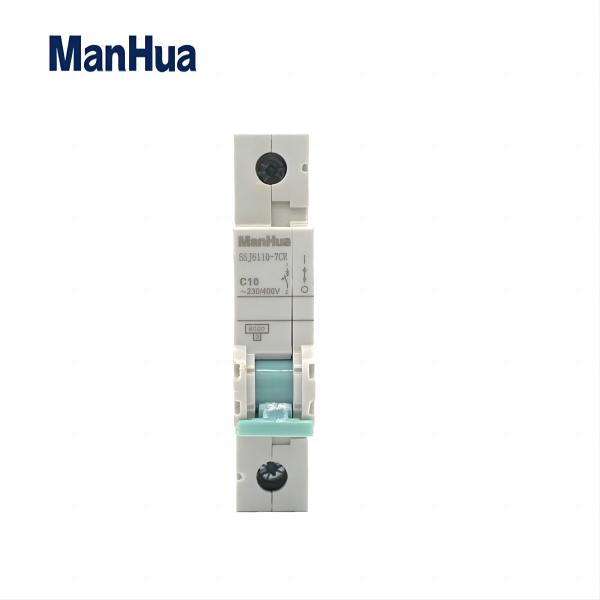

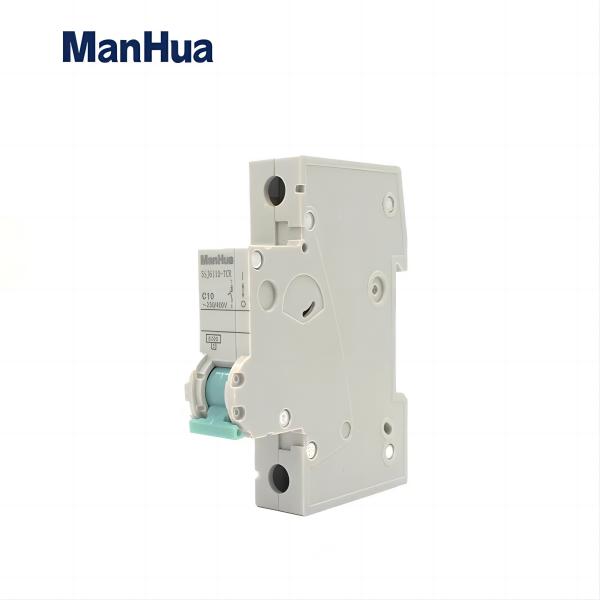

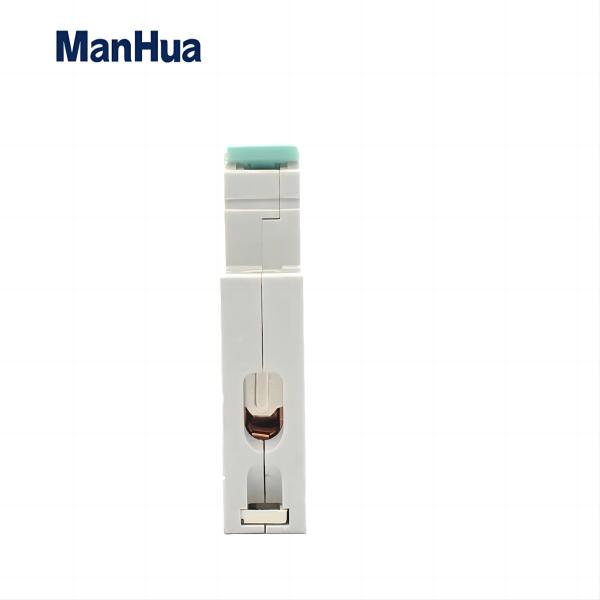

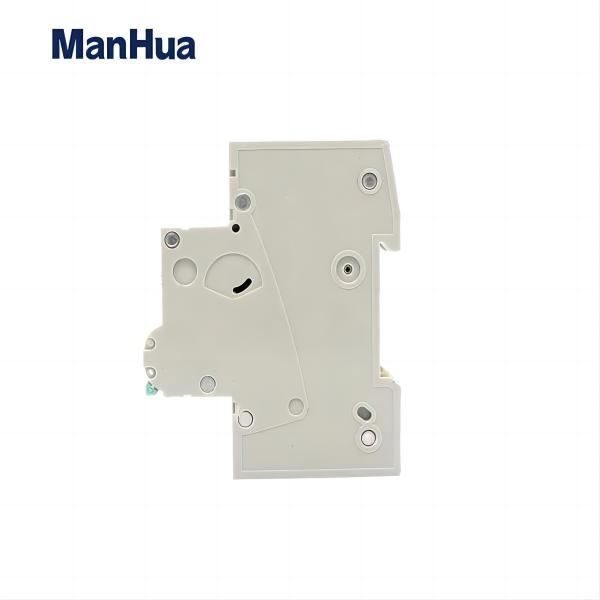

MCB Single Pole 5SJ6110 C Curve 16A 25A 63A 1P Breaking Capacity 6KA Miniature Circuit Breaker LOW Heat Rising AC230V DIN Rail
|
Product Brand |
ManHua |
|
Product Type |
5SJ6110-7CR |
|
Product Name |
Miniature Circuit Breaker |
|
Rated Voltage Ue |
230/400VAC |
|
Rated Current |
10/16/25/32/63A |
|
Rated frequency |
50/60Hz |
|
Number Of Pole |
1P |
|
Product keywords |
Short Circuit/Overload/isolation |
|
Standard |
IEC/EN60898-1 |
|
Thermal operating limit(In) |
1.13-1.45 |
|
Breaking capacity |
6kA |
|
Degree of protection |
IP40(top),IP20(terminal),with connected conduct |
|
Material |
Flame Resistant Plastic and Copper |
|
Mechanical life(0-C) |
10000 |
|
Application |
Household and industrial circuit breakers |
|
installation |
35mm DIN Rail |
|
Product Function |
Short-circuit equipment protection |
|
Packing |
Carton |
|
Terminal tightening torque(N.m） |
2.5-3 |
|
trip curve |
C |
|
Ambient temperature |
-40℃~+85℃ |
|
Altitude |
20000 |
|
Operation method |
operating handle |
