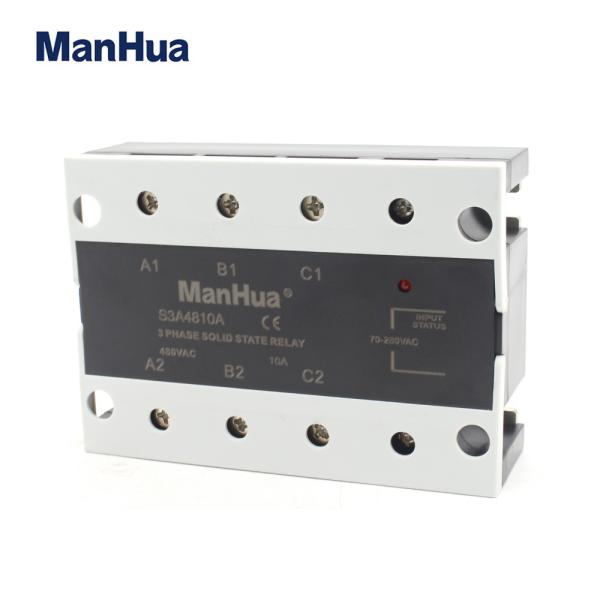

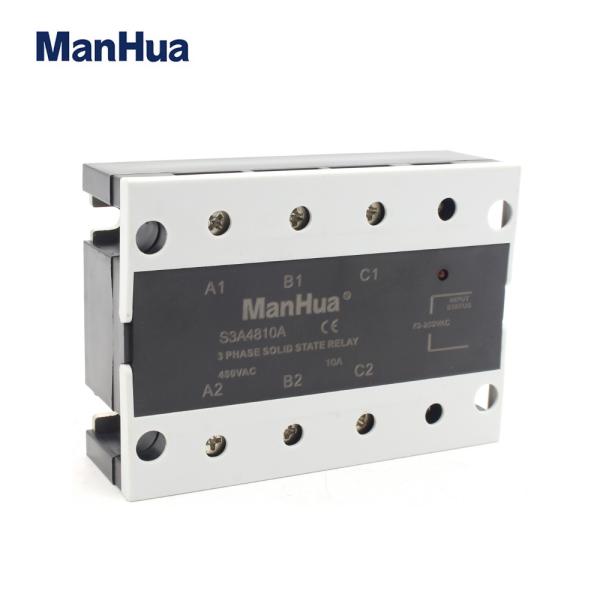

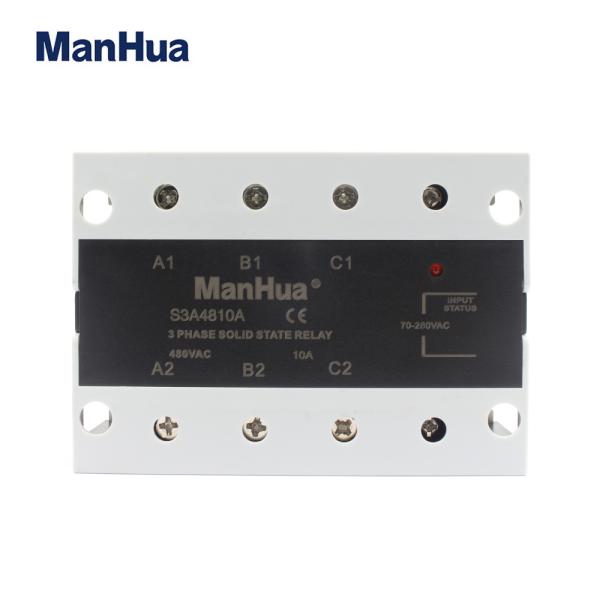

S3A4810A/S3A4825A/S3A4840A/S3A4860A Solid state relay three phase SSR 3P Series AC-AC 10A/25A/40A/60A Control Voltage 70-280VA

Power Source: AC Voltage: 480V
is_customized: Yes Usage: General Purpose
Model Number: S3A4810A/S3A4825A/S3A4840A/S3A4860A Contact Load: Low Power
Protect Feature: Sealed Theory: Solid State Relay
Brand Name: ManHua Load Voltage: 480VA
CInput Control Voltage: 70-280VA Cindicator: LED
Ambient Temperature: -30~+75℃ Off Leakage Current: ≤10mA
On-off Time: ≤10ms Request quotation

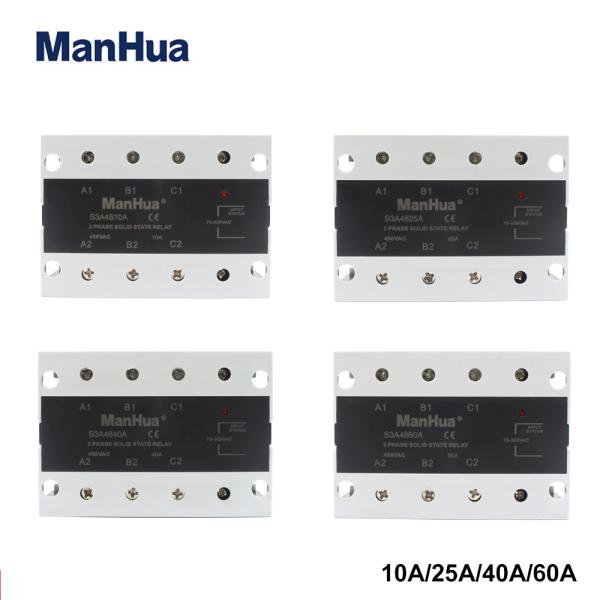

ManHua Solid state relay three phase SSR 3P Series AC-AC 10A/25A/40A/60A Control Voltage 70-280VAC

11

Specification:

Load Current:10A/25A/40A/60A

Load Voltage:480VAC

Control Voltage:70-280VAC

On voltage:≤2VAC

Off Leakage Current:≤10mA

On-off Time:≤10ms

Dielectric Strength:2500VAC

Insulation Resistance:1000M/500VDC

Ambient Temperature:-30~+75℃

The work instructions:LED



Features:

No contact, no noise, no spark,wide work voltage range, quick and stable reaction,high electromagnetic compatibility,excellent heat-sink, anti-vibration,explosion-proof, long lasting usage.



Application:

With a switch no spark, no noise,high switching speed,anti-corrosion,moisture-proof,anti-vibration,long life.high reliability,electromagnetic compatibility and other characteristics.It can be widely used in aerospace,marine,household appliances,machine tools,telecommunications,automobile,mining,etc.automation and control area.

723

About Feedback:

Dear friends: Welcome to my store, thank you! Your satisfaction is our aim, your feedback is very important for us sellers, if you are satisfied with the goods, please give us 5 star encourage if you are not 100% satisfied with the product, please be sure to contact me, please do not just hit bad review.I believe we can solve the problem together.



Quality assurance:

1.One year guarantee.

2.If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).

3.We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost(from us to your location);After 1 month of purchase, the buyer need to pay two ways of shipping cost.

4.One we get the returned items, we will send the replaced ones back as soon as possible.

5.Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts.
