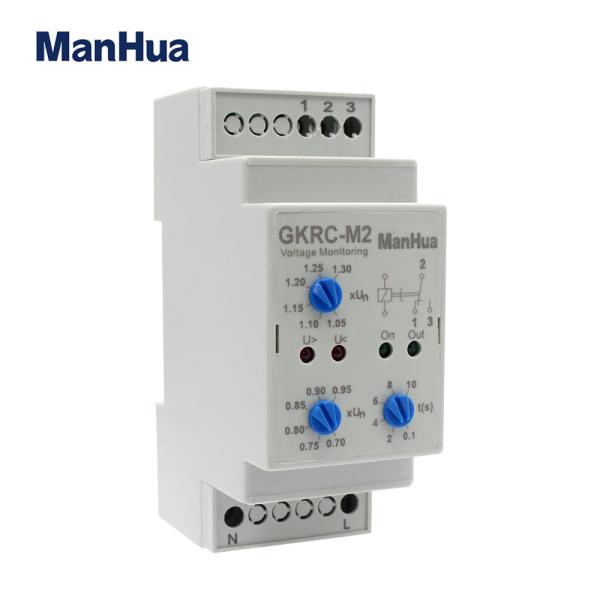

Manhua GKRC-M2 3 phase Voltage Monitoring relay Phase Failure Relay monitor relay

Description:

GKRC series“over and under voltage”monitoring devices are adjustable “delay OFF”protection devices.They are mainly used for protection of 3-phase and single-phase systems-such as electronic command and control systems,capacitors of power compensation,switch-boards,air-condition systems,motors etc.

Technical data:

Rated frequency:50/60Hz

Voltage adjustment(L-L):Umax:(1.05-1.30)×Vin

                                            Umin:(0.70-0.95)×Vin

Delay time:0.1-10sn.min.(adjustable)

Output contact:1C/O,8A,2000VA

Set point hysteresis:%3

Ambient temperature:-5℃~+50℃

Installation:Surface mounted or rail-mounted

Protection class:IP20

Precautions for installation and safe use:

1.Disconnect all power before working on equipment.

2.When the device is connected to the network,do not remove the front panel.

3.Do not try to clean the device with solvent or the like.Only clean the device with a dried cloth.

4.Verify correct terminal connections when wiring.

5.Electrical equipment should be serviced only by your compedent seller.

   No responsibility is assured by the manufacturer or any of its subsidiaries for any consequences arising out of the use of this material.

6.Mount device to the panel.
